    Class OpacityAnimationStep

    Opacity Animation Step

    A FigureElement has color and opacity properties. The color property has an alpha channel that defines opacity, but it should be used as a base color definition, and not used to dissolve an element in and out.

    Therefore, to animate an element's opacity or temporarily dissolve in or out an element, use an opacity animation step.

    The opacity is multiplied by the color alpha channel to get the final opacity of the element.

    By default, the opacity will start with the FigureElement's current opacity unless dissolving. If dissolving, the opacity will start at 0 if dissolving in, or 1 if dissolving out unless dissolveFromCurrent is true in which case the opacity will start from the current opacity.

    The DissolveInAnimationStep and DissolveOutAnimationStep extend the OpacityAnimationStep to make it even more convenient to dissolve.

    To test examples, append them to the boilerplate

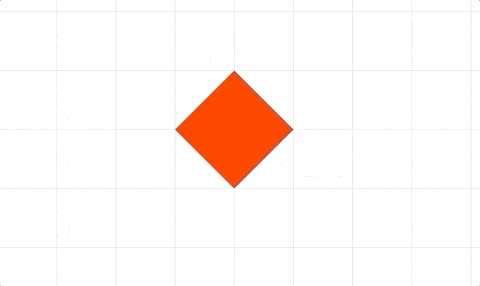

    // Using numerical values for opacity
    p.animations.new()
      .opacity({ target: 0.4, duration: 2 })
      .opacity({ target: 1, duration: 2 })
      .start();

    // Dissolve out then in
    p.animations.new()
      .opacity({ dissolve: 'out', duration: 2 })
      .opacity({ dissolve: 'in', duration: 2 })
      .start();

    // Using the dissolve animation step
    p.animations.new()
      .dissolveOut(2)
      .dissolveIn({ delay: 1, duration: 2 })
      .start();

    // Different ways to create a stand-alone step
    const step1 = p.animations.opacity({
      target: 0,
      duration: 2,
    });
    const step2 = new Fig.Animation.OpacityAnimationStep({
      element: p,
      target: 1,
      duration: 2,
    });
    const step3 = p.animations.dissolveOut({
      duration: 2,
    });
    const step4 = new Fig.Animation.DissolveInAnimationStep({
      element: p,
      duration: 2,
    });

    p.animations.new()
      .then(step1)
      .then(step2)
      .then(step3)
      .then(step4)
      .start();
