    Gesture rectangle.

    This primitive creates a rectangle within which pan and zoom gestures can be captured (from mouse and touch events) and transformed into pan and zoom values. The pan and zoom values can be used to change Scene objects directly, or used for some custom purpose.

    The pan and zoom values are relative to the gesture rectangle and the Scene it is drawn with.

    Performing a drag gesture over half the width of the rectangle, will create a pan value that is half the width of the rectangle.

    Performing a 2x zoom gesture at a point within the rectangle will create a pan value that is the delta between the original rectangle center and the center of the new zoomed rectangle, and a magnification value of 2.

    Any combination of zoom and pan can be expressed as a pan value, that offsets the original rectangle such that when it is then zoomed, the zoom position will be at the same relative position of the original and zoomed rectangle.

    Whenever a gesture changes the pan or zoom, then 'pan' or 'zoom' notifications will be published by the primitive's NotificationManger (element.notifications).

    The handled gestures are:

    • Mouse wheel change (often used for zooming and panning with a mouse)
    • Drag (often used for panning with touch devices or a mouse)
    • Pinching (often used for zooming and panning on touch devices)

    A pan is an offset in xy.

    The gestures that can generate pan events are:

    • Mouse click then drag
    • Finger touch then drag (touch devices)
    • Mouse wheel change

    For the mouse click and drag, and finger touch and drag gestures, the pan value tracks the change in position of the mouse/finger in the gesture primitive rectangle. For example, if the rectangle has a width of 2, and the mouse or touch moves across half the width of the rectangle, then the pan offset will be 1.

    For the mouse wheel change, a wheelSensitivity value is used to speed up or slow down the pan.

    When a pan event happens, a 'pan' notification is published. The parameter passed to any subscribers is the pan offset value, but if more information is needed (like the pan delta from the last pan) then getPan() can be called.

    A zoom is a magnification at a point in the rectangle. The zoom point will stay stationary, while the other points around it spread out (when zooming in) or compress in (when zooming out). The zoom event thus includes a pan offset to ensure the zoom point stays stationary, as well as a magnification value.

    The gestures that can generate zoom events are:

    • Mouse wheel vertical change
    • Finger touch pinch

    A wheelSensitivity or pinchSenstivity value is used to speed up or slow down zooming.

    When a zoom event happens, a 'zoom' notification is published. The parameters passed to any subscribers are the zoom magnification value and pan offset, but if more information is needed (like the zoom position) then getZoom() can be called.

    Zoom and pan events can be used in many ways. One of the most common ways will be to change a Scene that contains one or more FigureElements allowing a user to pan or zoom through the scene.

    In such cases, the zoomScene() and panScene() methods can be used to do this directly.

    Alternately, a changeScene can be defined which will be automatically panned and zoomed by this primitive.

    In general the scene that is being used to draw the gesture primitive should not be panned or zoomed by the gesture primitive, as this will produce unexpected results (especially when panning). If the gesture primitive is setup to change the same scene as it uses itself, then it will assign itself a duplicate scene.

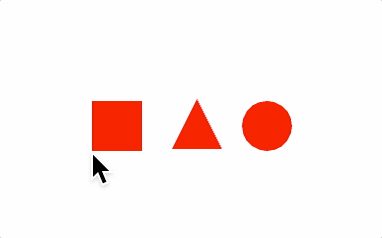

    // Gesture primitive pans and zooms a figure scene
    const figure = new Fig.Figure({ color: [1, 0, 0, 1] });

    // Elements within the figure to zoom and pan
    figure.add([
      { make: 'rectangle', width: 0.2, height: 0.2, position: [-0.3, 0] },
      { make: 'triangle', width: 0.2, height: 0.2, position: [0.02, -0.025] },
      { make: 'ellipse', width: 0.2, height: 0.2, position: [0.3, 0] },
    ])

    // Gesture Primitive
    figure.add({
      make: 'gesture',
      changeScene: figure.scene,
      pan: true,
      zoom: true,
    });

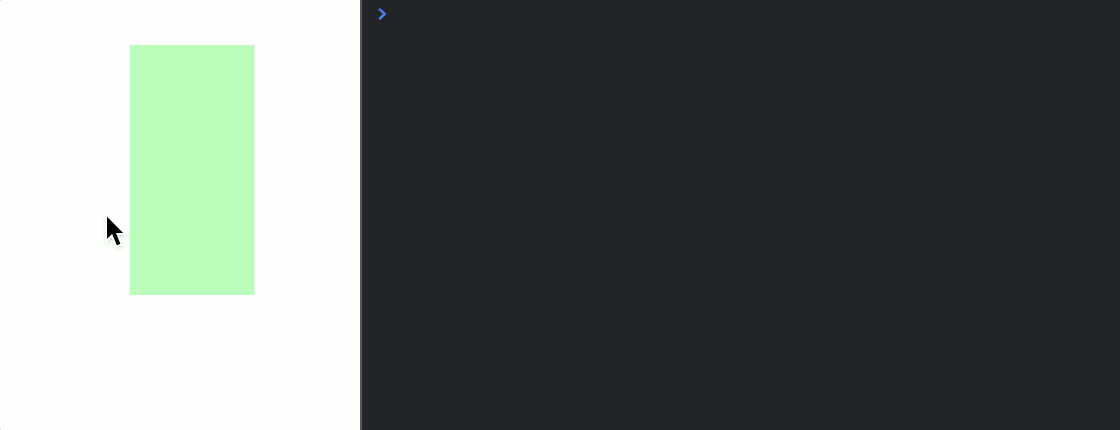

    // Using zoom and pan notifications when the gestures are confied
    // to a green rectangle
    const figure = new Fig.Figure({ color: [1, 0, 0, 1] });

    const gesture = figure.add({
      make: 'gesture',
      color: [0, 1, 0, 0.3],
      width: 0.5,
      height: 1,
      pan: true,
      zoom: true,
    });

    gesture.notifications.add(
      'pan', offset => console.log('Pan: ', offset.x, offset.y),
    );
    gesture.notifications.add(
      'zoom', (mag, offset) => console.log('Zoom: ', mag, offset.x, offset.y),
    );
