    FigureElementPrimitive that can efficiently translate large numbers of points.

    The morph primitive is optimized to animate hundreds of thousands of points with minimal performance impact.

    Multiple arrays of points can be defined, and the translation of corresponding points in two arrays can be animated.

    Being able to accomodate so many points means this primitive can be used to efficiently morph shapes.

    All points in all point arrays can be assigned an individual color if desired. Use color: TypeColor to assign all points in all arrays the same color, color: Array<TypeColor> to assign all points in each array a specific color, color: Array<Array<TypeColor>> to assign each point in each array a specific color, and color: Array<TypeColor | Array<TypeColor> to assign some point arrays with one color, and others with a specific color per point.

    A point array is an array of numbers representing consecutive x, y points. For example, [x1, y1, x2, y2, ...].

    A color array is an array of numbers representing the color of each points. For example, [r1, g1, b1, a1, r2, g2, b2, a2, ...].

    If color is an array of colors and/or color arrays, then the its length must be equal to the number of point Arrays. The colors in the array will be matched up with the corresponding point arrays in points.

    This element's specialty is creating a visual effect, and so does not automatically calculate touch borders, and doesn't allow for color changes (with the setColor, dim, and undim methods). If touch borders are desired then either setup touch borders manually, or use a different element as a touch pad.

    This element comes with two specialized methods and an animation step:

    • setPoints - sets points to a specific point array
    • setPointsBetween - sets points to a position between two point arrays
    • animations.morph - morph between start and target

    Note, while animation is efficient, loading or generating hundreds of thousands of points when first instantiated can be slow on lower end systems, and may need to be accounted for (like letting the user know that loading is ongoing).

    const { polylineToShapes, getPolygonCorners } = Fig.morph;
    const { range } = Fig;

    // Number of shapes that make up the lines
    const n = 300;

    // Generate a line of points along a sinc function
    const sinc = (xIn, a, b) => {
      const x = xIn === 0 ? 0.00001 : xIn;
      return a * Math.sin(b * x) / (b * x);
    };

    // Generate line of shapes along a sinc function
    const xValues = range(-0.8, 0.8, 0.01);
    const [sincPoints] = polylineToShapes({
      points: xValues.map(x => [x, sinc(x, 0.6, 20)]),
      num: n,
      size: 0.04,
      shape: 15,
    });

    // Generate a line of shapes along a square
    const [squarePoints] = polylineToShapes({
      points: [[0.5, 0.5], [-0.5, 0.5], [-0.5, -0.5], [0.5, -0.5]],
      num: n,
      size: 0.04,
      close: true,
      shape: 15,
    });

    // Generate a line of shapes along a circle
    const [circlePoints] = polylineToShapes({
      points: getPolygonCorners({ radius: 0.5, sides: 50, rotation: Math.PI / 4 }),
      num: n,
      size: 0.04,
      close: true,
      shape: 15,
    });

    const morpher = figure.add({
      make: 'morph',
      names: ['sinc', 'square', 'circle'],
      points: [sincPoints, squarePoints, circlePoints],
      color: [1, 0, 0, 1],
    });

    // Animate morph
    morpher.animations.new()
      .delay(1)
      .morph({ start: 'sinc', target: 'square', duration: 2 })
      .morph({ start: 'square', target: 'circle', duration: 2 })
      .morph({ start: 'circle', target: 'sinc', duration: 2 })
      .start();

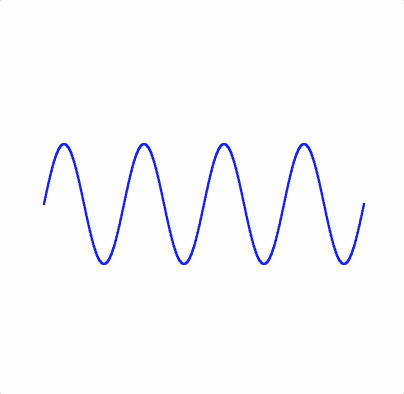

    const { imageToShapes, circleCloudShapes, polylineToShapes } = Fig.morph;
    const { range } = Fig;

    const image = new Image();
    image.src = './logocolored.png';
    image.onload = () => {
      const [logo, logoColors] = imageToShapes({
        image,
        width: 2,
        height: 2,
        dither: 0.003,
      });

      const n = logo.length / 2 / 6;
      const cloud = circleCloudShapes({
        radius: 3,
        num: n,
        size: 0.005,
      });

      const xValues = range(-0.8, 0.8, 0.001);
      const [sine] = polylineToShapes({
        points: xValues.map(x => [x, 0.3 * Math.sin(x * 2 * Math.PI / 0.4)]),
        num: n,
        size: 0.01,
      });

      const m = figure.add({
        make: 'morph',
        points: [cloud, logo, sine],
        names: ['cloud', 'logo', 'sine'],
        color: [logoColors, logoColors, [0, 0, 1, 1]],
      });

      m.setPoints('sine');
      m.animations.new()
        .delay(1)
        .morph({ start: 'sine', target: 'cloud', duration: 2 })
        .morph({ start: 'cloud', target: 'logo', duration: 2 })
        .start();
    };
