    Interactivity API Reference

    Figure element move freely parameters

    If a figure element is released from moving with some velocity then these parameters will define how it continues to move freely

    • zeroVelocityThreshold: TypeTransformValue

      used to overcome limitations of floating point numbers not reaching 0

    • deceleration: TypeTransformValue

      amount to decelerate in local space units per second squared

    • bounceLoss: TypeTransformValue

      0.5 results in 50% velocity loss if bouncing of boundary

    • callback: ?(string | ((boolean) => void))

      called each frame of free movement

    Figure element move parameters

    • type: type: 'rotation' | 'translation' | 'position' | 'scale' | 'scaleX' | 'scaleY' | 'scaleZ'
    • bounds: TypeParsableBounds

      rectangle to limit movement within

    • plane: Plane

      movement plane

    • maxVelocity: TypeTransformValue = 5

      maximum velocity allowed

    • freely: OBJ_ElementMoveFreely

      free movement parameters - use false for disabling free movement after touch up

    • element: FigureElement | null | string

    Extends OBJ_Generic

    • zoom: OBJ_ZoomOptions | boolean | undefined = false

      zoom options - if not false then zoom will be enabled

    • pan: OBJ_PanOptions | boolean | undefined = false

      pan options - if not false then pan will be enabled

    • onlyWhenTouched: boolean | undefined = true

      (mouse wheel zoom/pan and pinch zoom) only notify when element gesture rectangle is being touched

    • back: boolean | undefined = true

      if true 3D shape interactivity will be prioritized

    • width: number | undefined

      width of rectangle - defaults to full scene width

    • height: number | undefined

      height of rectangle - defaults to full scene height

    • scene: OBJ_Scene | Scene | undefined

      define if gesture should be an independeant scene (like if the gestures are being used to change the default figure scene) - defaults to Figure scene

    • changeScene: OBJ_Scene | undefined

      if defined, this scene will be automatically updated with any pan and zoom events

    • xAlign: 'left' | 'center' | 'right' | number | undefined = 'center'

      x alignment of rectangle

    • yAlign: 'bottom' | 'middle' | 'top' | number | undefined = 'middle'

      y alignment of rectangle

    Gesture rectangle.

    This primitive creates a rectangle within which pan and zoom gestures can be captured (from mouse and touch events) and transformed into pan and zoom values. The pan and zoom values can be used to change Scene objects directly, or used for some custom purpose.

    The pan and zoom values are relative to the gesture rectangle and the Scene it is drawn with.

    Performing a drag gesture over half the width of the rectangle, will create a pan value that is half the width of the rectangle.

    Performing a 2x zoom gesture at a point within the rectangle will create a pan value that is the delta between the original rectangle center and the center of the new zoomed rectangle, and a magnification value of 2.

    Any combination of zoom and pan can be expressed as a pan value, that offsets the original rectangle such that when it is then zoomed, the zoom position will be at the same relative position of the original and zoomed rectangle.

    Whenever a gesture changes the pan or zoom, then 'pan' or 'zoom' notifications will be published by the primitive's NotificationManger (element.notifications).

    The handled gestures are:

    • Mouse wheel change (often used for zooming and panning with a mouse)
    • Drag (often used for panning with touch devices or a mouse)
    • Pinching (often used for zooming and panning on touch devices)

    A pan is an offset in xy.

    The gestures that can generate pan events are:

    • Mouse click then drag
    • Finger touch then drag (touch devices)
    • Mouse wheel change

    For the mouse click and drag, and finger touch and drag gestures, the pan value tracks the change in position of the mouse/finger in the gesture primitive rectangle. For example, if the rectangle has a width of 2, and the mouse or touch moves across half the width of the rectangle, then the pan offset will be 1.

    For the mouse wheel change, a wheelSensitivity value is used to speed up or slow down the pan.

    When a pan event happens, a 'pan' notification is published. The parameter passed to any subscribers is the pan offset value, but if more information is needed (like the pan delta from the last pan) then getPan() can be called.

    A zoom is a magnification at a point in the rectangle. The zoom point will stay stationary, while the other points around it spread out (when zooming in) or compress in (when zooming out). The zoom event thus includes a pan offset to ensure the zoom point stays stationary, as well as a magnification value.

    The gestures that can generate zoom events are:

    • Mouse wheel vertical change
    • Finger touch pinch

    A wheelSensitivity or pinchSenstivity value is used to speed up or slow down zooming.

    When a zoom event happens, a 'zoom' notification is published. The parameters passed to any subscribers are the zoom magnification value and pan offset, but if more information is needed (like the zoom position) then getZoom() can be called.

    Zoom and pan events can be used in many ways. One of the most common ways will be to change a Scene that contains one or more FigureElements allowing a user to pan or zoom through the scene.

    In such cases, the zoomScene() and panScene() methods can be used to do this directly.

    Alternately, a changeScene can be defined which will be automatically panned and zoomed by this primitive.

    In general the scene that is being used to draw the gesture primitive should not be panned or zoomed by the gesture primitive, as this will produce unexpected results (especially when panning). If the gesture primitive is setup to change the same scene as it uses itself, then it will assign itself a duplicate scene.

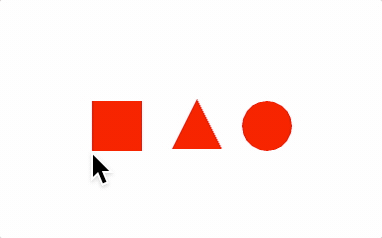

    const figure = new Fig.Figure({ color: [1, 0, 0, 1] });

    // Elements within the figure to zoom and pan
    figure.add([
      { make: 'rectangle', width: 0.2, height: 0.2, position: [-0.3, 0] },
      { make: 'triangle', width: 0.2, height: 0.2, position: [0.02, -0.025] },
      { make: 'ellipse', width: 0.2, height: 0.2, position: [0.3, 0] },
    ])

    // Gesture Primitive
    figure.add({
      make: 'gesture',
      changeScene: figure.scene,
      pan: true,
      zoom: true,
    });

    // to a green rectangle
    const figure = new Fig.Figure({ color: [1, 0, 0, 1] });

    const gesture = figure.add({
      make: 'gesture',
      color: [0, 1, 0, 0.3],
      width: 0.5,
      height: 1,
      pan: true,
      zoom: true,
    });

    gesture.notifications.add(
      'pan', offset => console.log('Pan: ', offset.x, offset.y),
    );
    gesture.notifications.add(
      'zoom', (mag, offset) => console.log('Zoom: ', mag, offset.x, offset.y),
    );

    Touch options for a FigureElement.

    • enable: boolean | undefined = true

      true to enable touch

    • onClick: string | ((Point, FigureElement) => void) | undefined

      function to execute when element is touched. If string, then a function from the FunctionMap is used.

    • colorSeed: string | undefined = 'default'

      use a unique string to reset color generation of unique colors used for touch determination (debug only)

    Camera control definition object that extends and OBJ_FigurePrimitive

    A camera control is a transparent rectangle that uses touch and drag gestures to rotate the position of the camera in a 3D scene around a vertical axis.

    The vertical axis will always remain vertical. Left/right movements will rotate the scene around the vertical axis (in the azimuth of the vertical axis), while up/down movements will change the elevation relative to the vertical axis.

    The transparent rectangle will be positioned relative to the 2D HTML canvas the figure is drawn in on the screen. The left, bottom, width and height properties are numbers from 0 to 1 which represent percentage of the screen width and height.

    Thus for the rectangle to cover the entire screen, values of left: 0, bottom: 0, width: 1 and height: 1 would be used (these are the default values as well).

    By default, the figure's Scene camera position is modified. If an element's custom scene is to be controlled, use the scene property to link to it.

    How fast the camera is rotated in the aziumuth and elevation is controlled by the sensitivity, xSensitivity and ySensitivity properties. A higher sensitivity value will result in more rotation for the same user movement. If only azimuthal or elevation rotation is desired set ySensitivity or xSensitivity to 0 respectively.

    • left: number | undefined

      screen left position to place the control rectangle. 0 is the left edge, while 1 is the right edge (0).

    • bottom: number | undefined

      screen bottom position to place the control rectangle. 0 is the bottom edge, while 1 is the top edge (0).

    • width: number | undefined

      width of control rectangle. 1 is the full width of the drawing canvas (1).

    • height: number | undefined

      height of control rectangle. 1 is the full height of the drawing canvas (1).

    • axis: TypeParsablePoint | undefined = [0, 1, 0]

      Axis to keep vertical as camera is rotated. The axis vector and scene.camera.up vector should be in the same plane

    • controlScene: Scene | string | undefined

      Use this to control a scene that is not the default Figure scene.

    • sensitivity: number | undefined = 5

      sensitivity of camera position relative to user movement where larger numbers result in more rotation for the same movement

    • xSensitivity: number | undefined = 1

      sensitivity to a horizontal user movement. Setting this to 0 will mean the scene doesn't not rotate aziumthally

    • ySensitivity: number | undefined = 1

      sensitivity to a vertical user movement. Setting this to 0 will mean the elevation does not change

    • back: boolean | undefined = true

      if true then all 2D and 3D objects that can be touched will be touched before the camera control, regardless of where it is on the drawing stack. This should be used everytime 3D objects need priority over the camera control

    figure.add([
      {
        make: 'cylinder',
        radius: 0.01,
        color: [1, 0, 0, 1],
        line: [[-1, 0, 0], [1, 0, 0]],
      },
      {
        make: 'cylinder',
        radius: 0.01,
        color: [0, 1, 0, 1],
        line: [[0, -1, 0], [0, 1, 0]],
      },
      {
        make: 'cylinder',
        radius: 0.01,
        color: [0, 0, 1, 1],
        line: [[0, 0, -1], [0, 0, 1]],
      },
      {
        make: 'grid',
        bounds: [-0.8, -0.8, 1.6, 1.6],
        xStep: 0.05,
        yStep: 0.05,
        line: { width: 0.002 },
        color: [0.7, 0.7, 0.7, 1],
        transform: ['r', Math.PI / 2, 1, 0, 0],
      },
    ]);

    // Add camera control
    figure.add({
      make: 'cameraControl',
    });

    // azimuth only

    figure.add([
      {
        make: 'cylinder',
        radius: 0.01,
        color: [1, 0, 0, 1],
        line: [[-1, 0, 0], [1, 0, 0]],
      },
      {
        make: 'cylinder',
        radius: 0.01,
        color: [0, 1, 0, 1],
        line: [[0, -1, 0], [0, 1, 0]],
      },
      {
        make: 'cylinder',
        radius: 0.01,
        color: [0, 0, 1, 1],
        line: [[0, 0, -1], [0, 0, 1]],
      },
      {
        make: 'grid',
        bounds: [-0.8, -0.8, 1.6, 1.6],
        xStep: 0.05,
        yStep: 0.05,
        line: { width: 0.002 },
        color: [0.7, 0.7, 0.7, 1],
        transform: ['r', Math.PI / 2, 1, 0, 0],
      },
    ]);

    // Add a moveable cube
    figure.add({
      make: 'cube',
      side: 0.3,
      color: [1, 0, 0, 1],
      center: [0.3, 0, 0],
      move: {
        plane: [[0, 0, 0], [0, 1, 0]],
      },
    });

    // Add camera control bar at the bottom of the screen that only allows
    // rotation in the azimuth. As the camera control bar does not overlap the
    // cube, then both the cube can moved, and the scene rotated with the bar.
    figure.add({
      make: 'cameraControl',
      color: [0, 0, 0, 0.2],
      ySensitivity: 0,
      height: 0.1,
    });

    Range bounds object definition.

    A range bounds defines a minimum and maximum value.

    • min: number | null | undefined = null

      minimum value boundary, null for unbounded

    • max: number | null | undefined = null

      maximum value boundary, null for unbounded

    • precision: number | undefined = 8

      precision with which to calculate boundary intersect and contains

    A RectBounds is a rectangle bounds around a point in a plane.

    It is defined by:

    • a position in plane around which rectangle is formed
    • topDirection/rightDirection vectors that orient the rectangle
    • left/right magnitudes that define the width of the rectangle
    • bottom/top magnitudes that define the height of the rectangle
    ----------------------------------------------     A
    |                                            |     |
    |        Top Vector                          |     |
    |             A                              |     | top
    |             |                              |     |
    |             |                              |     |
    |    position *----->                        |   ---
    |                   Right Vector             |     |
    |                                            |     | bottom
    |                                            |     |
    ----------------------------------------------     V
    .             |
    .             |
    <-------------|----------------------------->
        left                right

    A rectangle can be defined in one of several ways:

    • position, plane normal, one direction vecvtor (top or right)
    • position, top and right direction vectors

    By default the rectangle will be in the XY plane (+z normal) with a rightDirection vector along the +x axis.

    A line bounds defines a line boundary.

    • line: TypeParsableLine | undefined
    • precision: number | undefined = 8

      precision with which to calculate boundary intersect and contains

    Parsable bounds definition.

    null | Bounds | RectBounds| LineBounds| RangeBounds | OBJ_RectBounds| OBJ_LineBounds| OBJ_RangeBounds | TypeF1DefRangeBounds| TypeF1DefRectBounds| TypeF1DefLineBounds
