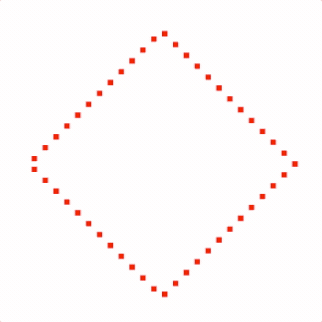

[vertices, colors]
const { polylineToShapes, getPolygonCorners } = Fig.morph;
const [square] = polylineToShapes({
points: [[0.5, 0], [0, 0.5], [-0.5, 0], [0, -0.5]],
num: 50,
size: 0.03,
close: true,
});
const [circle] = polylineToShapes({
points: getPolygonCorners({ radius: 0.5, sides: 30 }),
num: 50,
size: 0.03,
close: true,
});
const m = figure.add({
make: 'morph',
points: [square, circle],
color: [1, 0, 0, 1],
});
m.animations.new()
.morph({ start:0, target: 1, duration: 2 })
.start();

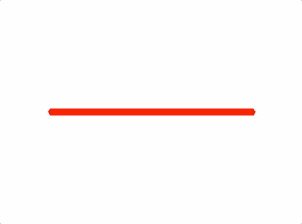

const { polylineToShapes, getPolygonCorners } = Fig.morph;
const [square] = polylineToShapes({
points: [[-0.5, 0], [0.5, 0]],
num: 500,
size: 0.02,
shape: 'hex',
});
const [circle] = polylineToShapes({
points: getPolygonCorners({ radius: 0.5, sides: 6, rotation: Math.PI / 2 }),
num: 500,
size: 0.02,
close: true,
shape: 'hex',
});
const m = figure.add({
make: 'morph',
points: [square, circle],
color: [1, 0, 0, 1],
});
m.animations.new()
.morph({ start:0, target: 1, duration: 2 })
.start();
const { polylineToShapes, getPolygonCorners } = Fig.morph;
const [square] = polylineToShapes({
points: getPolygonCorners({ radius: 0.5, sides: 4, rotation: Math.PI / 4 }),
num: 500,
close: true,
});
const [circle] = polylineToShapes({
points: getPolygonCorners({ radius: 0.25, sides: 100, rotation: Math.PI / 4 }),
num: 500,
close: true,
});
for (let i = 0; i < 10; i += 1) {
const m = figure.add({
make: 'morph',
points: [square, circle],
position: [0.2 - i / 30, 0.2 - i / 30],
color: [1 - i / 10, 0, i / 10, 1],
});
m.animations.new()
.delay(2 - i / 10)
.morph({ start: 0, target: 1, duration: 2 })
.delay(2)
.morph({ start: 1, target: 0, duration: 2 })
.start();
}
polylineToShapesdistributes a number of shapes equally along a polyline.The polyline is defined by an array of points, where each point is a corner in the polyline
The start and ends of the polyline each have a centered shape
The polyline can be closed or open.
This method is useful for morphing between shapes.
