Interface EQN_Container

Equation container options

A container is useful to fix spacing around content as it changes between equation forms.

Options can be an object, or an array in the property order below

See

To test examples, append them to the boilerplate

Example

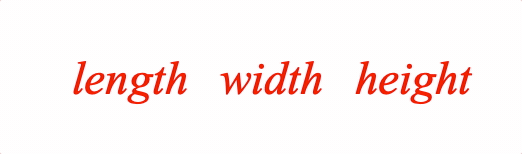

// Example showing the difference between with and without container
figure.add({
  name: 'eqn',
  make: 'equation',
  forms: {
    // Container object definition
    1: [
      'length',
      {
        container: {
          content: 'width',
          width: 0.5,
        },
      },
      'height',
    ],
    // Container array definition
    2: ['length', { container: ['w', 0.5] }, 'height'],
    // No container
    3: ['length', ' ', 'w', ' ', 'height']
  },
  formSeries: ['1', '2', '3'],
});
const eqn = figure.elements._eqn;
eqn.onClick = () => eqn.nextForm();
eqn.setTouchable();
eqn.showForm('1');

Example

// Create equation object then add to figure
const eqn = figure.collections.equation({
  forms: {
    1: [
      'length',
      { container: { content: 'width', width: 0.5 } },
      'height',
    ],
    2: ['length', { container: ['w', 0.5] }, 'height'],
    3: ['length', ' ', 'w', ' ', 'height']
  },
  formSeries: ['1', '2', '3'],
});
figure.add('eqn', eqn);
eqn.onClick = () => eqn.nextForm();
eqn.setTouchable();
eqn.showForm('1');
