Interface EQN_Integral

Equation integral

Place an integral (with optional limits) before an equation phrase

Use with a EQN_IntegralSymbol symbol.

Options can be an object, or an array in the property order below.

See

To test examples, append them to the boilerplate

Example

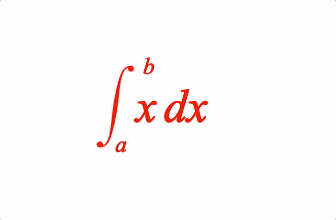

// Simple
figure.add({
  name: 'eqn',
  make: 'equation',
  forms: {
    1: { int: ['int', 'x dx', 'a', 'b'] },
  },
});
figure.elements._eqn.showForm('1');

Example

// Example showing different integral options
figure.add({
  name: 'eqn',
  make: 'equation',
  elements: {
    i: { symbol: 'int' },
    // ic: { symbol: 'int', num: 1, type: 'line' },
  },
  formDefaults: { alignment: { fixTo: 'x' } },
  forms: {
    // Root object form
    1: {
      int: {
        symbol: 'i',
        content: ['x', ' ', 'dx'],
        from: 'a',
        to: 'b',
      },
    },
    // Root array form
    2: { int: ['i', ['x', '  ', '+', ' ', '_1', ' ', 'dx'], 'a', 'b'] },
    // Indefinite tripple integral
    3: { int: ['i', ['x', '  ', '+', ' ', '_1', ' ', 'dx']] },
    // Custom spacing
    4: {
      int: {
        symbol: 'i',
        content: ['x', '  ', '+', ' ', '_1', ' ', 'dx'],
        to: 'b',
        from: { frac: ['a', 'vinculum', 'd + 2'] },
        topSpace: 0.2,
        bottomSpace: 0.2,
        limitsAroundContent: false,
      },
    },
  },
  formSeries: ['1', '2', '3', '4'],
});
const eqn = figure.elements._eqn;
eqn.onClick = () => eqn.nextForm();
eqn.setTouchable();
eqn.showForm('1');
