Interface EQN_LeftRightGlyph

Left/Right glyph options object.

A glyph can be to the left or right of an equation phrase (content). The glyph can also be annotated.


      ggg   CCCCCCCC   ggg
      ggg   CCCCCCCC   ggg
      ggg   CCCCCCCC   ggg
      ggg   CCCCCCCC   ggg

symbol string
annotation EQN_Annotation — use for one annotation only instead of property annotations
annotations EQN_Annotation[] — use for one or more annotations
space number — horizontal space between glyph and content (0)
overhang number — amount glyph extends above content top and below content bottom (0)
topSpace number — amount glyph extends above content top (overrids overhang)
bottomSpace number — amount glyph extends below content bottom (overrids overhang)
minContentHeight number — force min content height for auto glyph scaling
minContentDescent number — force min content descent for auto glyph scaling
minContentAscent number — force min content ascent for auto scaling
descent number — force descent of glyph
height number — force height of glyph (overrides overhang, topSpace, bottomSpace)
yOffset number — offset glyph in y (0)
annotationsOverContent boolean — true means only glyph is separated from content by space and not annotations (false`)

Example

figure.add({
  make: 'equation',
  elements: {
    rb: { symbol: 'angleBracket', side: 'right', width: 0.1 },
  },
  forms: {
    form1: {
      annotate: {
        content: 'a',
        glyphs: {
          right: {
            symbol: 'rb',
            space: 0.05,
            overhang: 0.1,
          },
        },
      },
    },
  },
});

Example

figure.add({
  make: 'equation',
  elements: {
    arrow: { symbol: 'arrow', direction: 'down' },
  },
  forms: {
    form1: {
      annotate: {
        content: 'a',
        glyphs: {
          left: {
            symbol: 'arrow',
            space: 0.05,
            overhang: 0.1,
            annotations: [
              {
                content: 'b',
                xPosition: 'center',
                yPosition: 'top',
                xAlign: 'center',
                yAlign: 'bottom',
                scale: 0.7,
                offset: [0, 0.05],
              },
              {
                content: 'n',
                xPosition: 'center',
                yPosition: 'bottom',
                xAlign: 'center',
                yAlign: 'top',
                scale: 0.7,
                offset: [0, -0.05],
              },
            ],
          },
        },
      },
    },
  },
});

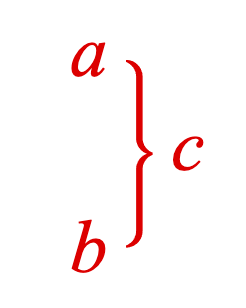

Example

figure.add({
  make: 'equation',
  elements: {
    brace: { symbol: 'brace', side: 'right', width: 0.05 },
  },
  forms: {
    form1: {
      annotate: {
        content: 'c',
        glyphs: {
          left: {
            symbol: 'brace',
            space: 0.05,
            overhang: 0.2,
            annotations: [
              {
                content: 'a',
                xPosition: 'left',
                yPosition: 'top',
                xAlign: 'right',
                yAlign: 'middle',
                offset: [-0.05, 0],
              },
              {
                content: 'b',
                xPosition: 'left',
                yPosition: 'bottom',
                xAlign: 'right',
                yAlign: 'middle',
                offset: [-0.05, 0],
              },
            ],
          },
        },
      },
    },
  },
});
