Interface EQN_SumOf

Equation sum of

Place an equation phrase in a sum of operation with the symbol EQN_SumSymbol.

Options can be an object, or an array in the property order below

See

To test examples, append them to the boilerplate

Example

// Simple
figure.add({
  name: 'eqn',
  make: 'equation',
  forms: {
    1: { sumOf: ['sum', 'x', 'b', 'a'] },
  },
});
figure.elements._eqn.showForm('1');

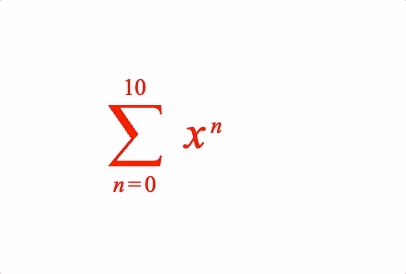

Example

// Example showing different options
figure.add({
  name: 'eqn',
  make: 'equation',
  elements: {
    s: { symbol: 'sum', draw: 'dynamic' },
    inf: '\u221e',
  },
  forms: {
    // Object form
    1: {
      sumOf: {
        symbol: 's',
        content: [{ sup: ['x', 'n'] }],
        from: ['n_1', ' ', '=', ' ', '_0'],
        to: '_10',
      },
    },
    // Array form
    2: { sumOf: ['s', [{ sup: ['x', 'm'] }], 'm_1', null]},
    // Styling with options
    3: {
      sumOf: {
        symbol: 's',
        content: { frac: [['x', ' ', '+', ' ', 'm'], 'vinculum', 'a'] },
        from: ['m_1', ' ', '=', ' ', '_0'],
        to: 'inf',
        fromScale: 0.8,
        toScale: 0.8,
      },
    },
  },
  formSeries: ['1', '2', '3'],
});
const eqn = figure.elements._eqn;
eqn.onClick = () => eqn.nextForm();
eqn.setTouchable();
eqn.showForm('1');
