Interface OBJ_Arc

Arc shape options object that extends OBJ_Generic (without drawType) and OBJ_FigurePrimitive

radius number
sides number — (20)
startAngle number — (0)
angle number — (1)
line OBJ_LineStyleSimple — line style options
drawBorderBuffer (number | TypeParsableBorder) & TypeParsableBorder — override the OBJ_Generic drawBorderBuffer with number to make the drawBorderBuffer a ellipse that is number thicker around its border (0)

See

To test examples, append them to the boilerplate

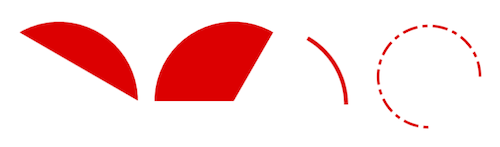

Example

// Simple fill
figure.add({
  make: 'arc',
  angle: Math.PI * 2 / 3,
  radius: 1,
});

Example

// Fill to center
figure.add({
  make: 'arc',
  angle: Math.PI * 2 / 3,
  startAngle: Math.PI / 3,
  radius: 1,
  fillCenter: true,
});

Example

// Arc line
figure.add({
  make: 'arc',
  angle: Math.PI / 3,
  radius: 1,
  line: { width: 0.05, widthIs: 'inside' },
});

Example

// Arc dashed line
figure.add({
  make: 'arc',
  angle: Math.PI * 3 / 2,
  radius: 1,
  sides: 100,
  line: { width: 0.05, dash: [0.3, 0.1, 0.1, 0.1] },
});
@interface
