Interface OBJ_Ellipse

Ellipse shape options object that extends OBJ_Generic (without drawType) and OBJ_FigurePrimitive

width number — (1)
height number — (1)
xAlign number | left | right | center — ('center')
yAlign number | top | bottom | middle — ('middle')
sides number — number of sides to draw ellipse with (20)
line OBJ_LineStyleSimple — line style options
drawBorderBuffer (number | TypeParsableBorder) & TypeParsableBorder — override the OBJ_Generic drawBorderBuffer with number to make the drawBorderBuffer a ellipse that is number thicker around its border (0)

See

To test examples, append them to the boilerplate

Example

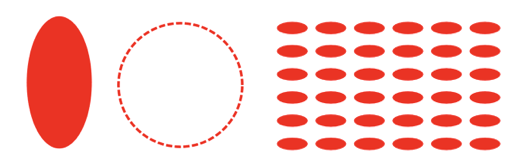

// Filled ellipse
figure.add({
  name: 'e',
  make: 'ellipse',
  height: 1,
  width: 0.5,
  sides: 100,
});

Example

// Dashed line circle
figure.add({
  name: 'e',
  make: 'ellipse',
  height: 1,
  width: 1,
  sides: 100,
  line: {
    width: 0.02,
    dash: [0.05, 0.02],
  },
});

Example

// Ellipse grid
figure.add({
  name: 'e',
  make: 'ellipse',
  height: 0.08,
  width: 0.2,
  sides: 20,
  copy: [
    { along: 'x', step: 0.25, num: 5 },
    { along: 'y', step: 0.15, num: 5 },
  ]
});
