Interface OBJ_Rectangle

Rectangle shape options object that extends OBJ_Generic (without `drawType) and OBJ_FigurePrimitive

width number — (1)
height number — (1)
xAlign number | left | right | center — ('center')
yAlign number | top | bottom | middle — ('middle')
corner OBJ_CurvedCorner — define for rounded corners
line OBJ_LineStyleSimple — line style options
drawBorderBuffer (number | TypeParsableBorder) & TypeParsableBorder — override the OBJ_Generic drawBorderBuffer with number to make the drawBorderBuffer a rectangle that is number wider and higher on each side (0)
offset TypeParsablePoint

See

To test examples, append them to the boilerplate

Example

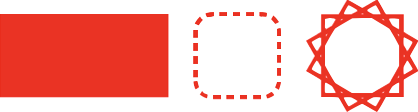

// Filled rectangle
figure.add({
  name: 'r',
  make: 'rectangle',
  width: 1,
  height: 0.5,
});

Example

// Corners with radius and dashed line
figure.add({
  name: 'r',
  make: 'rectangle',
  width: 0.5,
  height: 0.5,
  line: {
    width: 0.02,
    dash: [0.05, 0.03]
  },
  corner: {
    radius: 0.1,
    sides: 10,
  },
});

Example

// Rectangle copies rotated
figure.add({
  name: 'r',
  make: 'rectangle',
  width: 0.5,
  height: 0.5,
  line: {
    width: 0.01,
  },
  copy: {
    along: 'rotation',
    num: 3,
    step: Math.PI / 2 / 3
  },
});
@interface
