Interface OBJ_Star

Star options object that extends OBJ_Generic (without drawType) and OBJ_FigurePrimitive

sides number — (4)
radius number — (1)
innerRadius number — (radius / 2)
rotation number — shape rotation during vertex definition (different to a rotation step in a trasform) (0)
offset TypeParsablePoint — shape center offset from origin during vertex definition (different to a translation step in a transform) ([0, 0])
line OBJ_LineStyleSimple — line style options
drawBorderBuffer (number | TypeParsableBorder) & TypeParsableBorder — override the OBJ_Generic drawBorderBuffer with number to make the drawBorderBuffer a polygon that is number thicker than the radius (0)

See

To test examples, append them to the boilerplate

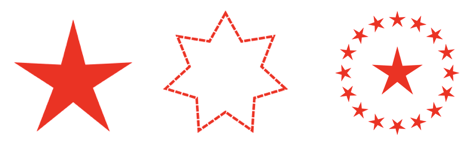

Example

// Simple 5 pointed star
figure.add({
  name: 's',
  make: 'star',
  radius: 0.5,
  sides: 5,
});

Example

// 7 pointed dashed line star
figure.add({
  name: 's',
  make: 'star',
  radius: 0.5,
  innerRadius: 0.3,
  sides: 7,
  line: {
    width: 0.02,
    dash: [0.05, 0.01],
  },
});

Example

// Star surrounded by stars
figure.add({
  name: 's',
  make: 'star',
  radius: 0.1,
  sides: 5,
  rotation: -Math.PI / 2,
  // line: { width: 0.01 },
  copy: [
    {
      to: [0.6, 0],
      original: false,
    },
    {
      along: 'rotation',
      num: 16,
      step: Math.PI * 2 / 16,
      start: 1,
    },
    {
      to: new Fig.Transform().scale(3, 3).rotate(Math.PI / 2),
      start: 0,
      end: 1,
    },
  ],
});
