    Class CustomAnimationStep

    Custom animation step

    Custom animation steps are useful for orchestrating complex animations, or performing non-linear animations.

    This step will execute a custom callback function on each animation frame. Custom animations can either have finite duration or infinite (duration = null). If finite, the callback function will be passed percentage progress through the duration. If infinite, the callback function will be passed the delta time from the start of the animation.

    The animation can be stopped at any time by returning true from the callback funciton/

    For finite durations, the percentage progress can either be linear with time, or non-linear. Built-in non-linear progressions are 'easeinout', 'easein' and 'easeout' which will slow progress at the start and/or end of the animation. A function to create a custom non-linear progressor can also be used.

    To test examples, append them to the boilerplate

    // Move an object through a sine wave of wavelength 1 from
    // x = -1 to x = 1
    function sine(percentComplete) {
      const x = -1 + percentComplete * 2;
      const y = 0.5 * Math.sin(Math.PI * 2 * x);
      p.setPosition(x, y);
    }

    p.animations.new()
      .custom({ callback: sine, duration: 5 })
      .start();

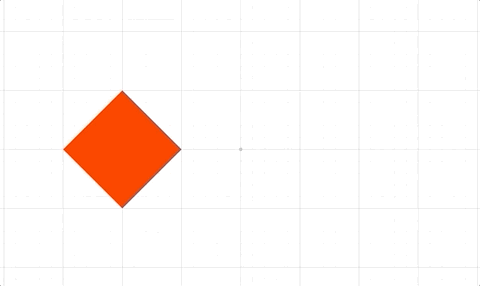

    // Animate a object in a circle indefinitely at a frequency of 0.1Hz
    p.animations.new()
      .custom({
        callback: (t) => {
          const x = 0.5 * Math.cos(2 * Math.PI * 0.1 * t);
          const y = 0.5 * Math.sin(2 * Math.PI * 0.1 * t);
          p.setPosition(x, y);
        },
        duration: null,
      })
      .start();

    Hierarchy (View Summary)

    Index

    Methods

    getRemainingTime start
