Morphing API Reference

FigureElementPrimitiveMorph
OBJ_Morph
OBJ_ImageToShapes
imageToShapes
OBJ_PolylineToShapes
polylineToShapes
OBJ_PointsToShapes
pointsToShapes
OBJ_PolygonCloudShapes
polygonCloudShapes
OBJ_CircleCloudShapes
circleCloudShapes
OBJ_RectangleCloudShapes
rectangleCloudShapes

FigureElementPrimitiveMorph

FigureElementPrimitive that can efficiently translate large numbers of points.

The morph primitive is optimized to animate hundreds of thousands of points with minimal performance impact.

Multiple arrays of points can be defined, and the translation of corresponding points in two arrays can be animated.

Being able to accomodate so many points means this primitive can be used to efficiently morph shapes.

All points in all point arrays can be assigned an individual color if desired. Use color: TypeColor to assign all points in all arrays the same color, color: Array<TypeColor> to assign all points in each array a specific color, color: Array<Array<TypeColor>> to assign each point in each array a specific color, and color: Array<TypeColor | Array<TypeColor> to assign some point arrays with one color, and others with a specific color per point.

A point array is an array of numbers representing consecutive x, y points. For example, [x1, y1, x2, y2, ...].

A color array is an array of numbers representing the color of each points. For example, [r1, g1, b1, a1, r2, g2, b2, a2, ...].

If color is an array of colors and/or color arrays, then the its length must be equal to the number of point Arrays. The colors in the array will be matched up with the corresponding point arrays in points.

This element's specialty is creating a visual effect, and so does not automatically calculate touch borders, and doesn't allow for color changes (with the setColor, dim, and undim methods). If touch borders are desired then either setup touch borders manually, or use a different element as a touch pad.

This element comes with two specialized methods and an animation step:

setPoints - sets points to a specific point array
setPointsBetween - sets points to a position between two point arrays
animations.morph - morph between start and target

Note, while animation is efficient, loading or generating hundreds of thousands of points when first instantiated can be slow on lower end systems, and may need to be accounted for (like letting the user know that loading is ongoing).

Example 1

const { polylineToShapes, getPolygonCorners } = Fig.morph;
const { range } = Fig;

// Number of shapes that make up the lines
const n = 300;

// Generate a line of points along a sinc function
const sinc = (xIn, a, b) => {
  const x = xIn === 0 ? 0.00001 : xIn;
  return a * Math.sin(b * x) / (b * x);
};

// Generate line of shapes along a sinc function
const xValues = range(-0.8, 0.8, 0.01);
const [sincPoints] = polylineToShapes({
  points: xValues.map(x => [x, sinc(x, 0.6, 20)]),
  num: n,
  size: 0.04,
  shape: 15,
});

// Generate a line of shapes along a square
const [squarePoints] = polylineToShapes({
  points: [[0.5, 0.5], [-0.5, 0.5], [-0.5, -0.5], [0.5, -0.5]],
  num: n,
  size: 0.04,
  close: true,
  shape: 15,
});

// Generate a line of shapes along a circle
const [circlePoints] = polylineToShapes({
  points: getPolygonCorners({ radius: 0.5, sides: 50, rotation: Math.PI / 4 }),
  num: n,
  size: 0.04,
  close: true,
  shape: 15,
});

const morpher = figure.add({
  make: 'morph',
  names: ['sinc', 'square', 'circle'],
  points: [sincPoints, squarePoints, circlePoints],
  color: [1, 0, 0, 1],
});

// Animate morph
morpher.animations.new()
  .delay(1)
  .morph({ start: 'sinc', target: 'square', duration: 2 })
  .morph({ start: 'square', target: 'circle', duration: 2 })
  .morph({ start: 'circle', target: 'sinc', duration: 2 })
  .start();

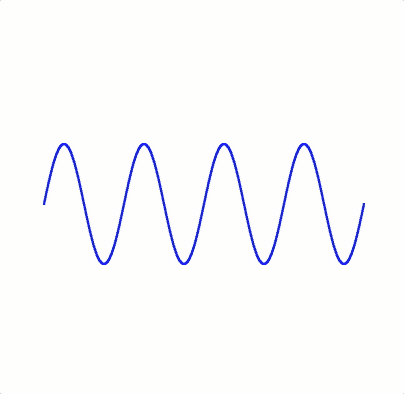

Example 2

const { imageToShapes, circleCloudShapes, polylineToShapes } = Fig.morph;
const { range } = Fig;

const image = new Image();
image.src = './logocolored.png';
image.onload = () => {
  const [logo, logoColors] = imageToShapes({
    image,
    width: 2,
    height: 2,
    dither: 0.003,
  });

  const n = logo.length / 2 / 6;
  const cloud = circleCloudShapes({
    radius: 3,
    num: n,
    size: 0.005,
  });

  const xValues = range(-0.8, 0.8, 0.001);
  const [sine] = polylineToShapes({
    points: xValues.map(x => [x, 0.3 * Math.sin(x * 2 * Math.PI / 0.4)]),
    num: n,
    size: 0.01,
  });

  const m = figure.add({
    make: 'morph',
    points: [cloud, logo, sine],
    names: ['cloud', 'logo', 'sine'],
    color: [logoColors, logoColors, [0, 0, 1, 1]],
  });

  m.setPoints('sine');
  m.animations.new()
    .delay(1)
    .morph({ start: 'sine', target: 'cloud', duration: 2 })
    .morph({ start: 'cloud', target: 'logo', duration: 2 })
    .start();
};

OBJ_Morph

morph options object.

Properties

name: string
primitive name
pointArrays: Array<Array<number>>
point arrays to morph between. Each point array is an array of consecutive x, y values of points. For example: [x1, y1, x2, y2, x3, y3, ...].
color: TypeColor | Array<TypeColor | Array<TypeColor>>
colors to be assigned to the points
names: Array
optional names for each point array. Names can be used when using the morph animation step instead of point array indeces.
glPrimitive: 'TRIANGLES' | 'POINTS' | 'FAN' | 'STRIP' | 'LINES' | undefined = 'TRIANGLES'
glPrimitive is the same for all point arrays

OBJ_ImageToShapes

Properties

image: Image | undefined
num: number | null | undefined = null
maximum number of shapes to return - null defaults to the number of pixels (or filtered pixels if a filter is used)
excess: 'repeatOpaqueOnly' | 'lastOpaque' | 'repeat' | undefined
if num is greater than the number of pixels, then either 'repeat' the shapes from all the pixels again, repeat the shapes from only the opaque pixels 'repeatOpaqueOnly' or put all execess shapes on the 'lastOpaque' pixel. Note, repeating pixels that are semitransparent will effectively put multiple pixels on top of each other, reducing the transparency of the pixel ('repeatOpaqueOnly').
filter: function(TypeColor, [number, number]) => boolean | undefined
filter function with pixel color and pixel position input parameters. Return true to keep pixel. Pixel position is (0, 0) in top left corner and (pixelsWidth, pixelsHeight) in the bottom right (() => true)
distribution: 'raster' | 'random' | undefined = random
Returned shapes are randomly distributed throughout shape ('random') or rasterized in order from top left to bottom right of image (or filtered image)
width: number | null | undefined
width to map image pixels to. Width is between center of most left to most right pixels
height: number | null | undefined
height to map image pixels to. Height is between center of most bottom to most top pixels
size: number | undefined
shape size to map pixel to. Final points will have a width of width + size center of points are used to determine width and height. Default shape is a square, and default size (if left undefined) is the size needed to make adjacent square shapes touch
position: TypeParsablePoint | undefined
position to place shapes at
xAlign: TypeHAlign | undefined
align shapes horizontally around position
yAlign: TypeVAlign | undefined
align shapes vertically around position
align: 'image' | 'filteredImage' | undefined
image will align the shapes as if there were no pixels filtered out. filteredImage will align to only the shapes that exist.
dither: number | undefined
Add a random offset to each shape to create a dither effect
shape: function(Point, number): Array<number> | number | undefined
By default a square of two triangles is created (six vertices). Use a number to create a regular polygon with number sides. Use a custom function to make a custom shape. The function takes as input the [x, y] position of the point to build the shape around, and size. It outputs an array of interlaced x and y coordinates of triangle vertices - i.e.: [x1, y1, x2, y2, x3, y3, ....]
makeColors: function(TypeColor, number): Array<number> | undefined
use this function to customze color mapping. The function takes as input the pixel's color, and the number of vertices that need to be colored. It outputs an array of colors for each vertex - i.e.: [r1, b1, g1, a1, r2, g2, b, a2, ...]

imageToShapes

imageToShapes maps the pixels of an image to shapes that will be used to draw those pixels.

All pixels in an image can be made shapes, or a filter function can be used to only use desired pixels.

The shapes can be rasterized in order (raster from top left to bottom right) or be in a random order.

The image pixel centers are mapped to some width and height and aligned to a position relative to either all pixels in the original image, or just the filtered pixels. The shapes are centered on the pixel centers.

This method is useful for including images in morphing effects. It should not be used to simply show an image (use a texture with some FigureElementPrimitive for this).

Parameters

options: OBJ_ImageToShapes

Returns

[Array<number>, Array<number>] — [vertices, colors]

Example 1

const { imageToShapes, rectangleCloudShapes } = Fig.morph;

const image = new Image();
image.src = './logo.png';
image.onload = () => {
  const [logo, logoColors] = imageToShapes({
    image,
    width: 0.7,
    height: 0.7,
    filter: c => c[3] > 0,
  });

  const cloud = rectangleCloudShapes({
    width: 2,
    height: 2,
    num: logo.length / 2 / 6,
  });

  const m = figure.add({
    make: 'morph',
    points: [cloud, logo],
    color: [logoColors, logoColors],
  });

  m.animations.new()
    .delay(1)
    .morph({ start: 0, target: 1, duration: 2 })
    .start();
};

Example 2

const { imageToShapes } = Fig.morph;

const micImage = new Image();
micImage.src = './mic.png';
const headphonesImage = new Image();
headphonesImage.src = './headphones.png';

let index = 0;
const loaded = () => {
  index += 1;
  if (index < 2) {
    return;
  }

  const [mic, micColors] = imageToShapes({
    image: micImage,
    width: 0.7,
    filter: c => c[3] > 0,
  });

  const [headphones, headphoneColors] = imageToShapes({
    image: headphonesImage,
    width: 0.7,
    filter: c => c[3] > 0,
    num: mic.length / 6 / 2,
  });

  const m = figure.add({
    make: 'morph',
    points: [mic, headphones],
    color: [micColors, headphoneColors],
  });

  m.animations.new()
    .delay(1)
    .morph({ start: 0, target: 1, duration: 2 })
    .start();
};

micImage.onload = loaded.bind(this);
headphonesImage.onload = loaded.bind(this);

OBJ_PolylineToShapes

Options obect for polylineToShapes that evenly distributes shapes along a line

Properties

points: Array<TypeParsablePoint>
array of points representing a polyline where each point is a corner in the line
num: number
number of shapes to distribute along line
close: boolean
true closes the polyline
size: number
size of shape
shape: function(Point, number): Array<number> | number | undefined
By default a square of two triangles is created (six vertices). Use a number to create a regular polygon with number sides. Use a custom function to make a custom shape. The function takes as input the [x, y] position of the point to build the shape around, and size. It outputs an array of interlaced x and y coordinates of triangle vertices - i.e.: [x1, y1, x2, y2, x3, y3, ....]
makeColors: function(number, Point, number, number, number): Array<number>
function that creates colors for each vertex of the shape. Function input parameters are the number of shape vertices to be colored, the center point coordinate, the previous polyline point index, the cumulative length from the start of the polyline, and the percentLength from the start of the polyline. The function must return a single array containing all vertex colors.

polylineToShapes

polylineToShapes distributes a number of shapes equally along a polyline.

The polyline is defined by an array of points, where each point is a corner in the polyline

The start and ends of the polyline each have a centered shape

The polyline can be closed or open.

This method is useful for morphing between shapes.

Parameters

options: OBJ_PolylineToShapes

Returns

[Array<number>, Array<number>] — [vertices, colors]

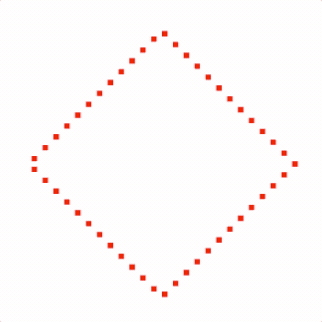

Example 1

const { polylineToShapes, getPolygonCorners } = Fig.morph;

const [square] = polylineToShapes({
  points: [[0.5, 0], [0, 0.5], [-0.5, 0], [0, -0.5]],
  num: 50,
  size: 0.03,
  close: true,
});


const [circle] = polylineToShapes({
  points: getPolygonCorners({ radius: 0.5, sides: 30 }),
  num: 50,
  size: 0.03,
  close: true,
});

const m = figure.add({
  make: 'morph',
  points: [square, circle],
  color: [1, 0, 0, 1],
});

m.animations.new()
  .morph({ start:0, target: 1, duration: 2 })
  .start();

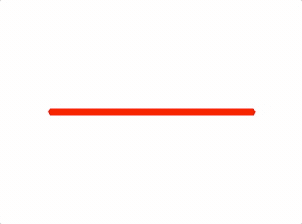

Example 2

const { polylineToShapes, getPolygonCorners } = Fig.morph;

const [square] = polylineToShapes({
  points: [[-0.5, 0], [0.5, 0]],
  num: 500,
  size: 0.02,
  shape: 'hex',
});

const [circle] = polylineToShapes({
  points: getPolygonCorners({ radius: 0.5, sides: 6, rotation: Math.PI / 2 }),
  num: 500,
  size: 0.02,
  close: true,
  shape: 'hex',
});

const m = figure.add({
  make: 'morph',
  points: [square, circle],
  color: [1, 0, 0, 1],
});

m.animations.new()
  .morph({ start:0, target: 1, duration: 2 })
  .start();

Example 3

const { polylineToShapes, getPolygonCorners } = Fig.morph;

const [square] = polylineToShapes({
  points: getPolygonCorners({ radius: 0.5, sides: 4, rotation: Math.PI / 4 }),
  num: 500,
  close: true,
});

const [circle] = polylineToShapes({
  points: getPolygonCorners({ radius: 0.25, sides: 100, rotation: Math.PI / 4 }),
  num: 500,
  close: true,
});

for (let i = 0; i < 10; i += 1) {
  const m = figure.add({
    make: 'morph',
    points: [square, circle],
    position: [0.2 - i / 30, 0.2 - i / 30],
    color: [1 - i / 10, 0, i / 10, 1],
  });

  m.animations.new()
    .delay(2 - i / 10)
    .morph({ start: 0, target: 1, duration: 2 })
    .delay(2)
    .morph({ start: 1, target: 0, duration: 2 })
    .start();
}

OBJ_PointsToShapes

Options obect for pointsToShapes that creates a shape at each point

Properties

points: Array<TypeParsablePoint>
array of points to create shapes at
size: number
size of shape
shape: function(Point, number): Array<number> | number | undefined
By default a square of two triangles is created (six vertices). Use a number to create a regular polygon with number sides. Use a custom function to make a custom shape. The function takes as input the [x, y] position of the point to build the shape around, and size. It outputs an array of interlaced x and y coordinates of triangle vertices - i.e.: [x1, y1, x2, y2, x3, y3, ....]
makeColors: function(number, Point): Array<number>
function that creates colors for each vertex of the shape. Function input parameters are the number of shape vertices to be colored, and the position of the shape. The function must return a single array containing all vertex colors.

pointsToShapes

pointsToShapes creates shapes at each point input.

This method is useful for morphing between shapes.

Parameters

options: OBJ_PointsToShapes

Returns

[Array<number>, Array<number>] — [vertices, colors]

Example 1

const { pointsToShapes } = Fig.morph;

const xValues = Fig.range(-0.8, 0.8, 0.001);
const sinc = (xIn, a, b, c) => {
  const x = (xIn + c) === 0 ? 0.00001 : xIn + c;
  return a * Math.sin(b * x) / (b * x);
};

const [trace1] = pointsToShapes({
  points: xValues.map(x => [x, sinc(x, 0.5, 20, 0)]),
  shape: 'hex',
});

const [trace2] = pointsToShapes({
  points: xValues.map(x => [x, 0.4 * Math.sin(x * 2 * Math.PI / 0.5)]),
  shape: 'hex',
});

const m = figure.add({
  make: 'morph',
  points: [trace1, trace2],
  color: [1, 0, 0, 1],
});

m.animations.new()
  .morph({ start: 0, target: 1, duration: 2 })
  .start();

OBJ_PolygonCloudShapes

Options object to generate shapes at random positions within a polygon.

Properties

num: number | undefined = 10
number of shapes to generate
size: number | undefined = 0.01
size of each shape
radius: number | undefined = 1
radius of polygon
sides: number | undefined = 4
number of polygon sides
position: TypeParsablePoint | undefined = [0, 0]
center position of polygon
rotation: number | undefined = 0
polygon rotation (first vertex will be along the positive x axis)
shape: function(Point, number): Array<number> | number | undefined
By default a square of two triangles is created (six vertices). Use a number to create a regular polygon with number sides. Use a custom function to make a custom shape. The function takes as input the [x, y] position of the point to build the shape around, and size. It outputs an array of interlaced x and y coordinates of triangle vertices - i.e.: [x1, y1, x2, y2, x3, y3, ....]

polygonCloudShapes

Generate random points within a polygon.

Parameters

polygonCloudPoints: OBJ_PolygonCloudShapes

Returns

Array<number> — array of interlaced x and y coordinates of vertices

Example 1

const { polygonCloudShapes } = Fig.morph;

const cloud1 = polygonCloudShapes({
  num: 2000,
  radius: 0.5,
  sides: 5,
});

const cloud2 = polygonCloudShapes({
  num: 2000,
  radius: 0.5,
  sides: 100,
});

const m = figure.add({
  make: 'morph',
  points: [cloud1, cloud2],
  color: [1, 0, 0, 1],
});

m.animations.new()
  .morph({ start: 0, target: 1, duration: 2 })
  .start();

OBJ_CircleCloudShapes

Options object to generate shapes at random positions within a circle.

Properties

num: number | undefined = 10
number of shapes to generate
pointSize: number | undefined = 0.01
size of each shape
radius: number | undefined = 1
radius of circle
position: TypeParsablePoint | undefined = [0, 0]
center position of circle
shape: function(Point, number): Array<number> | number | undefined
By default a square of two triangles is created (six vertices). Use a number to create a regular polygon with number sides. Use a custom function to make a custom shape. The function takes as input the [x, y] position of the point to build the shape around, and size. It outputs an array of interlaced x and y coordinates of triangle vertices - i.e.: [x1, y1, x2, y2, x3, y3, ....]

circleCloudShapes

Generate random points within a circle.

Parameters

options: OBJ_CircleCloudShapes

Returns

Array<number> — array of interlaced x and y coordinates of vertices

Example 1

const { circleCloudShapes } = Fig.morph;

const cloud1 = circleCloudShapes({
  num: 2000,
  radius: 2,
});

const cloud2 = circleCloudShapes({
  num: 2000,
  radius: 0.5,
});

const m = figure.add({
  make: 'morph',
  points: [cloud1, cloud2],
  color: [1, 0, 0, 1],
});

m.animations.new()
  .morph({ start: 0, target: 1, duration: 2 })
  .start();

OBJ_RectangleCloudShapes

Options object to generate shapes at random positions within a rectangle.

Properties

maxPoints: number | undefined = 10
number of shapes to generate
pointSize: number | undefined = 0.01
size of each shape
width: number | undefined = 1
width of rectangle
height: number | undefined = 1
height of rectangle
position: TypeParsablePoint | undefined = [0, 0]
center position of rectangle
shape: function(Point, number): Array<number> | number | undefined
By default a square of two triangles is created (six vertices). Use a number to create a regular polygon with number sides. Use a custom function to make a custom shape. The function takes as input the [x, y] position of the point to build the shape around, and size. It outputs an array of interlaced x and y coordinates of triangle vertices - i.e.: [x1, y1, x2, y2, x3, y3, ....]

rectangleCloudShapes

Generate random points within a rectangle.

Parameters

options: OBJ_RectangleCloudShapes

Returns

Array<number> — array of interlaced x and y coordinates of vertices

Example 1

const { rectangleCloudShapes } = Fig.morph;

const cloud1 = rectangleCloudShapes({
  num: 1000,
  width: 0.5,
  height: 0.5,
  position: [-0.5, 0],
});

const cloud2 = rectangleCloudShapes({
  num: 1000,
  width: 0.7,
  height: 0.7,
});

const m = figure.add({
  make: 'morph',
  points: [cloud1, cloud2],
  color: [1, 0, 0, 1],
});

m.animations.new()
  .morph({ start: 0, target: 1, duration: 2 })
  .start();

Morphing API Reference

Contents

FigureElementPrimitiveMorph

Example 1

Example 2

OBJ_Morph

Properties

OBJ_ImageToShapes

Properties

imageToShapes

Parameters

Returns

Example 1

Example 2

OBJ_PolylineToShapes

Properties

polylineToShapes

Parameters

Returns

Example 1

Example 2

Example 3

OBJ_PointsToShapes

Properties

pointsToShapes

Parameters

Returns

Example 1

OBJ_PolygonCloudShapes

Properties

polygonCloudShapes

Parameters

Returns

Example 1

OBJ_CircleCloudShapes

Properties

circleCloudShapes

Parameters

Returns

Example 1

OBJ_RectangleCloudShapes

Properties

rectangleCloudShapes

Parameters

Returns

Example 1

Settings

On This Page
