Text API Reference

Contents

• OBJ_FormattedText
• FontManager
• OBJ_Font

---

OBJ_FormattedText

Extends OBJ_Collection

FormattedText options object that extends OBJ_Collection options object (without parent).

Formatted text allows:

• Use of more than one font
• Multi-line text
• Embedded equations
• Interactivity on select strings

If text is defined as an array of strings of line definition objects, then each element of the array will be a new line of text.

All text will be laid out with the default font (or default line font if a line definition object is used).

To modify the font of portions of text within a line, surround the text to modify with '|' characters. The string surrounded by the '|' characters will then be a unique identifier that can be referenced in the modifiers property which will then allow for replacing that text with some other text, changing the font of the text, changing the touchability of the text and/or replacing the text with an embedded equation.

If a string is surrounded by '|' characters but not defined in modifiers then that string will have the formmating of the accent property applied to it.

Properties

• text: Array<string | OBJ_TextLineDefinition> | string | undefined

  array of line strings - single string is single line only.

• modifiers: OBJ_TextModifiersDefinition | undefined

  modifier definitions

• font: OBJ_Font | undefined

  Default font to use in lines

• defaultTextTouchBorder: TypeParsableBuffer | undefined

  default buffer for touch property in OBJ_TextModifiersDefinition

• elements: EQN_EquationElements | undefined

  equation elements to use within the equation phrases defined in modifiers

• justify: 'left' | 'right' | 'center | undefined = left

  justification of lines

• lineSpace: number | undefined = font.size * 0.5

  Space between ascent of each line with descent of previous line

• baselineSpace: number | undefined = undefined

  Space between baselines of lines. This will override lineSpace for all lines including individual line settings

• xAlign: 'left' | 'right' | 'center' | undefined = left

  horizontal alignment of lines with position

• yAlign: 'bottom' | 'baseline' | 'middle' | 'top' | undefined = baseline

  vertical alignment of lines with position

• border: TypeParsableBuffer | TypeParsableBorder | 'children' | 'rect' | number | undefined = 'draw'

  border used for keeping shape within limits

• touchBorder: TypeParsableBuffer | TypeParsableBorder | 'border' | 'children' | 'rect' | number | undefined

  border used for determining shape was touched. number and 'rect' use the the points in 'buffer' to calculate the bounding rects ('buffer').

• accent: OBJ_Font | undefined

  default modifier for accented text without a specific modification. By default accented text will be italic.

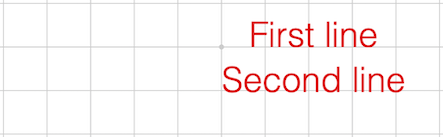

Multi-line center justified

figure.add({
  make: 'ftext',
  text: ['First line', 'Second line'],
  justify: 'center',
});
Copy

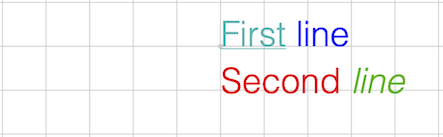

Modifiers

figure.add({
  make: 'ftext',
  text: ['|First| |line|', 'Second |line2|'],
  modifiers: {
    First: { font: { underline: 'true', color: [0, 0.7, 0.7, 1] } },
    line: { font: { color: [0, 0, 1, 1] } },
    line2: { text: 'line', font: { color: [0, 0.7, 0, 1], style: 'italic' } },
  },
});
Copy

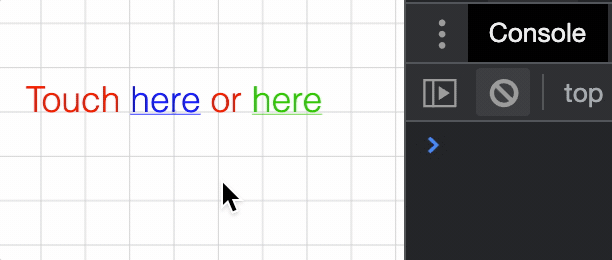

Interactive words in formatted text

figure.add({
  make: 'ftext',
  text: 'Touch |here| or |here2|',
  modifiers: {
    here: {
      font: { underline: true, color: [0, 0, 1, 1] },
      touch: 0.1,
      onClick: () => console.log('here 1'),
    },
    here2: {
      text: 'here',
      font: { underline: true, color: [0, 0.8, 0, 1] },
      touch: 0.1,
      onClick: () => console.log('here 2'),
    },
  },
  xAlign: 'center',
});
Copy

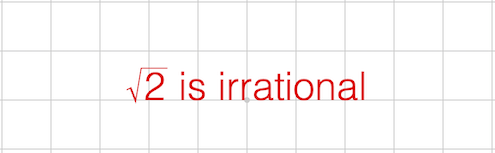

Embedded equation (inline form definition)

figure.add({
  make: 'ftext',
  text: '|root2| is irrational',
  modifiers: {
    root2: { eqn: { root: ['radical', '2'] } },
  },
  xAlign: 'center',
});
Copy

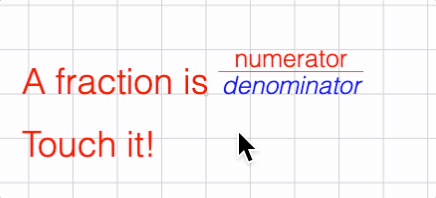

Embedded equation with defined, touchable elements

figure.add({
  name: 't',
  make: 'ftext',
  text: ['A fraction is |fraction|', 'Touch it!'],
  modifiers: {
    fraction: {
      eqn: {
        scale: [{ frac: ['num', 'v', 'den'] }, 0.7],
      },
      offset: [0, 0.2],
      touch: 0.1,
      onClick: () => figure.get('t').pulse({
        elements: ['num', 'den', 'v'],
        centerOn: 'v',
        xAlign: 'left',
        scale: 1.3,
      }),
      space: 0.3,
    },
  },
  elements: {
    num: 'numerator',
    den: { text: 'denominator', color: [0, 0, 1, 1], style: 'italic' },
    v: { symbol: 'vinculum' },
  },
  xAlign: 'center',
});
Copy

To test examples, append them to the boilerplate

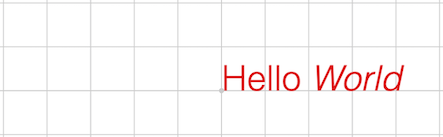

// Accent a word figure.add({ make: 'ftext', text: 'Hello |World|', });

---

FontManager

Font manager can be used to query if fonts are available, and watch to see when they load or time out.

Notifications - The notification manager property notifications will publish the following events:

• fontsLoaded: published when all fonts have been loaded or timed out
• fontLoaded: published after each font is loaded
• fontUnavailable: published when loading a font has timed out

---

OBJ_Font

Font definition object.

A font can be defined either from a subset of the properties used to define fonts in css, or by using a texture altas of the various glyphs to be used.

A font can be rendered into a 2D canvas or into the WebGL canvas using the texture atlas.

A texture atlas can either be supplied as an image, or generated automatically by FigureOne based on css font definitions.

Choosing how to render text depends on the application.

If text size is to be animated through a large scale range, then rendering on the 2D canvas is advantageous as it can scale text to any size without a loss of sharpness. The main disadvantage of the 2D canvas is the fact that it's a different HTML canvas element to the WebGL canvas. Thus all text on the 2D canvas will always be above (default) or below the WebGl canvas independent of when it is drawn. This means text will always be above or below shapes. regenerated each time the size changes by some threshold.

Conversely, drawing text on the WebGL canvas provides control on which shapes can hide text and vise versa. The disadvantage is that text is drawn from a texture atlas of bitmapped fonts. This means as text is progressively scaled up or down, the the text will look more pixelated or blurry. For many scalings (like common scalings in an equation), this will likely not be a problem. But for large changes in animated scale, it will be better to use the 2D canvas. Scaling also needs to be considered if the WebGL canvas is expected to be resized. On a desktop browser, a canvas element can be resized a lot, and so if using the WebGL atlas, it may need to be

Note, the choice of where to render text can be made for each text element. Therefore it is possible to have some text rendered to the 2D canvas, and other text rendered to the WebGL canvas in the same figure.

A texture atlas can either be supplied as an image, or generated automatically by FigureOne based on the css font definitions.

CSS font definition:

• family - the typeface family from which it comes (e.g. 'Helvetica', 'Times New Roman')
• style - its slope (e.g. 'italic')
• weight - its thickness (e.g. 'bold')
• size

Atlas font definition:

• src - the image or url to the image - if not supplied then atlas will be generated automatically
• map - description of location and size of each glyph in the atlas
• glyphs - the available glyphs in the atlas. To reduce the size of the atlas, include only the glyphs that are being used, or use a preset alphabet (like 'latin', or 'math')
• atlasColor - if true then the rendered glyph color will be the same as that in the texture. If false, then only the transparency channel of the texture will be used and color will be defined by the FigureElement drawing the text.
• atlasSize - if defined, and if the glyphs are generated automatically then the glyphs will be created with a pixel size that is atlasSize portion of the canvas height. If undefined, then the glyphs will be created with a pixel size that is the ratio of the font size to the scene height portion of the canvas height.

A font can also have a number of modifying properties:

• color - fill or outline color of each glyph - not used if the texture atlas color is to be used
• underline
• outline - defines whether the font is filled, is an outline, or both

Fonts that are generated automatically rely on the client's browser to measure the font's width. From this the ascent and descent of each glyph is then estimated. Each glyph's width, ascent and descent is used to layout the glyphs in regular text and equations, as well as determine the borders and touch borders of FigureElements that draw the text.

However, this estimate for different font families is not always perfectly accurate. If the estimate is not sufficient, then it can be modified by using the following properties (where each property is a proportion of the width of a character 'a'):

• maxAscent: Maximum ascent of glyphs like "A" or "$"
• midAscent: ascent of mid level glyphs like "a" and "g"
• descent: descent of glyphs that do not noticeably go below the baseline (but often do a little) like "a" and "b"
• midDescent: descent of glyphs that go a little below the baseline like "," and ";"
• maxDescent: maximum descent of glyphs like "g" and "|"

Individual glyphs can also be modified (for atlas based fonts only) using the modifiers property.

Properties

• family: string | undefined = 'Times New Roman'

  The font family

• style: 'normal' | 'italic' | 'oblique' | undefined = 'normal'
• weight: TypeFontWeight | undefined = 'normal'

  font weight

• size: number | undefined = 0.2

  size of font in draw space

• underline: boolean | OBJ_Underline | undefined = false

  true to include an underline or use object to define its properties

• color: [number, number, number, number] | undefined = [1, 0, 0, 1]

  Font color [red, green, blue, alpha] between 0 and 1 -

• outline: OBJ_Outline | undefined = false

  options to draw the text in outline instead of or in addition to a fill

• descent: number | undefined = 0.8
• maxDescent: number | undefined = 0.2
• midDescent: number | undefined = 0.5
• maxAscent: number | undefined = 0.95
• midAscent: number | undefined = 1.4
• modifiers: OBJ_GlyphModifiers | undefined

  individual glyph adjustments for texture atlas fonts

• src: Image | string | undefined

  source image or url for atlas

• map: OBJ_AtlasMap | undefined

  atlas definition needed if using a source image or url

• glyphs: string | 'greek' | 'math' | 'latin' | 'all' | 'common' | 'mathExt' | Array<string> | undefined

  glyphs included in the font - an array can be used combining glyphs together

• atlasSize: null |number | undefined = null

  font size of atlas as a proportion of the WebGL canvas height. If this is null, then the atlas font size is calculated from the font size, scene height and number of pixels in the canvas height.

• loadColor: TypeColor | undefined

  color of temporary texture while actual texture is loading

• atlasColor: boolean | undefined

  true to use the color of the glyphs in the atlas. false will just use the opacity and color the glyphs from the FigureElement drawing them

• render: 'gl' | '2d' | 'html' | undefined

  render the associated text to either the WebGL canvas, the 2D canvas, or the HTML canvas.

Full font definition

const font = new FigureFont({
  family: 'Helvetica',
  style: 'italic',
  weight: 'bold',
  color: [1, 1, 0, 1],
  opacity: 1,
});
Copy

Define style only, remaining properties are defaults

const font = new FigureFont({
  style: 'italic',
});
Copy

---
