Interface OBJ_Cone

Cone shape options object that extends OBJ_Generic3All and OBJ_FigurePrimitive

By default, a cone with its base at the origin and its tip along the x axis will be created.

sides number — number of sides (10)
radius number — radius of cube base
normals flat | curve — flat normals will make light shading across a face cone constant. curve will gradiate the shading. Use curve to make a surface look more round with fewer number of sides. (flat)
line TypeParsableLine — line that can position and orient the cone. First point of line is cone base center, and second point is cone tip.
length number — length of the cone along the x axis if line isn't defined (1)
rotation number — rotation of base - this is only noticable for small numbers of sides (0) points of cube
lines boolean — if true then points representing the edes of the faces will be returned. If false, then points representing two triangles per face and an associated normal for each point will be returned.

See

To test examples, append them to the boilerplate

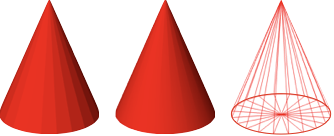

Example

figure.add({
  make: 'cone',
  radius: 0.2,
  sides: 20,
  color: [1, 0, 0, 1],
  line: [[0, 0, 0], [0, 0.5, 0]],
});

Example

// Cone with curve normals
figure.add({
  make: 'cone',
  radius: 0.2,
  normals: 'curve',
  sides: 20,
  color: [1, 0, 0, 1],
  line: [[0, 0, 0], [0, 0.5, 0]],
});

Example

// Wire mesh cone
figure.add({
  make: 'cone',
  radius: 0.2,
  normals: 'curve',
  sides: 20,
  color: [1, 0, 0, 1],
  line: [[0, 0, 0], [0, 0.5, 0]],
  lines: true,
});
