Interface OBJ_Cube

Cube shape options object that extends OBJ_Generic3All and OBJ_FigurePrimitive

By default, a cube will be constructed around the origin, with the xyz axes being normal to the cube faces.

side number — side length (1)
center TypeParsablePoint — center point ([0, 0]) points of cube
lines boolean — if true then points representing the 12 edges of the cube will be returned. If false, then points representing two triangles per face (12 triangles, 36 points) and an associated normal for each point will be returned. (false)

See

To test examples, append them to the boilerplate

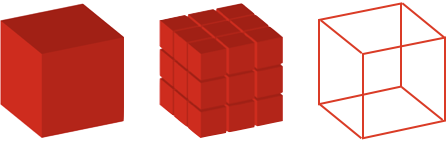

Example

figure.add({
  make: 'cube',
  side: 0.5,
  color: [1, 0, 0, 1],
});

Example

// 3x3 grid of cubes
figure.add({
  make: 'cube',
  side: 0.2,
  color: [1, 0, 0, 1],
  copy: [
    { along: 'x', num: 2, step: 0.22 },
    { along: 'y', num: 2, step: 0.22 },
    { along: 'z', num: 2, step: 0.22 },
  ],
});

Example

// Wire mesh cube
figure.add({
  make: 'cube',
  side: 0.5,
  lines: true,
  color: [1, 0, 0, 1],
});
@interface
