Animation API Reference

Contents

• AnimationBuilder
• AnimationManager
• CustomAnimationStep
• DelayAnimationStep
• ColorAnimationStep
• DimAnimationStep
• UndimAnimationStep
• OpacityAnimationStep
• DissolveInAnimationStep
• DissolveOutAnimationStep
• PositionAnimationStep
• PulseAnimationStep
• RotationAnimationStep
• ScaleAnimationStep
• ScenarioAnimationStep
• TransformAnimationStep
• SerialAnimationStep
• TriggerAnimationStep

---

AnimationBuilder

Extends SerialAnimationStep

Animation Builder

Convenient way to build animation steps in serial. Each step returns the same builder object, and so chaining in a fluent like API can be achieved.

Example 1

p.animations.new()
  .delay(1)
  .position({ target: [1, 0], duration: 2 })
  .delay(1)
  .rotation({ target: Math.PI, duration: 2 })
  .start();
Copy

AnimationManager.new

---

AnimationManager

Animation Manager

This class manages animations and creates animation steps for use in animations.

Each FigureElement has its own AnimationManager in the animations property, though any animation manager can animate any other element. Therefore all parallel animations can go through the same manager, or be spread throughout different element's animation managers. Spread animations out between elements, or keeping them all in one AnimationManager can change how readable code is, how convenient it is to cancel running animations, and what order the animations are performed in (AnimationManagers tied to elements drawn earlier will perform their animation steps before those tied to elements drawn later). AnimationManagers will only be processed on each animation frame if the element they are tied to is not hidden.

The animations property within AnimationManager is simply an array that contains a number AnimationSteps that are executed in parallel. Typically, these steps would themselves be SerialAnimationSteps or a series of animations. This means the animation manager is running a number of animation series in parallel.

The AnimationManagers on FigureElements should be used instead of instantiating this class separately, as those on FigureElements will be automatically processed every animation frame.

Properties

• state: 'animating' | 'idle' | 'waitingToStart'
• animations: Array
• notifications: NotificationManager

Parameters

At its heart the AnimationManager is just executing

// an array of animation steps.

// Create animation steps
const position = new Fig.Animation.PositionAnimationStep({
  element: p,
  target: [1, 0],
  duration: 2,
});
const rotation = new Fig.Animation.RotationAnimationStep({
  element: p,
  target: Math.PI,
  duration: 2,
});

// Combine the animations into a SerialAnimationStep
const series = new Fig.Animation.SerialAnimationStep([
  position,
  rotation,
]);

// Add the animations to the animation manager and start
p.animations.animations.push(series);
p.animations.start();
Copy

Using the new method in AnimationManager creates a convenient

// `AnimationBuilder` which extends a `SerialAnimationStep` by using
// a fluent API pattern
//
// Create animation steps
const position = new Fig.Animation.PositionAnimationStep({
  element: p,
  target: [1, 0],
  duration: 2,
});
const rotation = new Fig.Animation.RotationAnimationStep({
  element: p,
  target: Math.PI,
  duration: 2,
});

// Build and start the animation
p.animations.new()
  .then(position)
  .then(rotation)
  .start();
Copy

AnimationSteps can also be created from the AnimationManager

// with the added convenience that the `FigureElement` that
// has the `AnimationManager` will be used as the default
// `element` property. This combined with the `AnimationBuilder`
// makes defining most animations clean and readable code

// Build and start the animation
p.animations.new()
  .position({ target: [1, 0], duration: 2 })
  .rotation({ target: Math.PI, duration: 2 })
  .start();
Copy

Parallel animations however still need to use explicit animation steps.

// Creating the steps from the `AnimationManager` means the `element` doesn't
// need to be defined.
//
p.animations.new()
  .inParallel([
    p.animations.position({ target: [1, 0], duration: 2 }),
    p.animations.rotation({ target: Math.PI, duration: 2 })
  ])
  .start();
Copy

FigureElement

AnimationBuilder

---

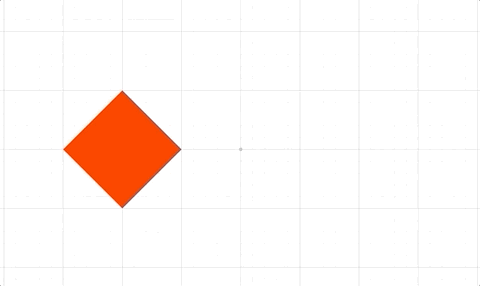

CustomAnimationStep

Extends AnimationStep

Custom animation step

Custom animation steps are useful for orchestrating complex animations, or performing non-linear animations.

This step will execute a custom callback function on each animation frame. Custom animations can either have finite duration or infinite (duration = null). If finite, the callback function will be passed percentage progress through the duration. If infinite, the callback function will be passed the delta time from the start of the animation.

The animation can be stopped at any time by returning true from the callback funciton/

For finite durations, the percentage progress can either be linear with time, or non-linear. Built-in non-linear progressions are 'easeinout', 'easein' and 'easeout' which will slow progress at the start and/or end of the animation. A function to create a custom non-linear progressor can also be used.

Parameters

• options: OBJ_CustomAnimationStep

Move an object through a sine wave of wavelength 1 from

// x = -1 to x = 1
function sine(percentComplete) {
  const x = -1 + percentComplete * 2;
  const y = 0.5 * Math.sin(Math.PI * 2 * x);
  p.setPosition(x, y);
}

p.animations.new()
  .custom({ callback: sine, duration: 5 })
  .start();
Copy

Animate a object in a circle indefinitely at a frequency of 0.1Hz

p.animations.new()
  .custom({
    callback: (t) => {
      const x = 0.5 * Math.cos(2 * Math.PI * 0.1 * t);
      const y = 0.5 * Math.sin(2 * Math.PI * 0.1 * t);
      p.setPosition(x, y);
    },
    duration: null,
  })
  .start();
Copy

To test examples, append them to the boilerplate

---

DelayAnimationStep

Extends AnimationStep

Delay animation step

While all animations steps accept a delay property, having this step sometimes makes the animation seem more readable.

Parameters

• delayOrOptions: number | OBJ_AnimationStep

---

ColorAnimationStep

Extends ElementAnimationStep

Color animation Step

By default, the color will start with the element's current color.

Use either delta or target to define the end color

In an interactive figure, it is often useful to highlight elements of the figure by coloring them and greying out, or dimming the elements not of interest. As such, a FigureElement has several color attributes:

• color - current color
• dimColor - color to dim to
• defaultColor - color to undim to

The target property can accept 'dim' and 'undim' as shortcuts to dim or undim the element.

In addition, the DimAnimationStep and UndimAnimationStep can be used to do the same, which is especially useful when trying to build easy to read code in a complex animation.

Parameters

• options: OBJ_ColorAnimationStep

Using duration

p.animations.new()
  .color({ target: [0, 0, 1, 1], duration: 1 })
  .color({ target: [0, 0.8, 0, 1], duration: 1 })
  .color({ target: [1, 0, 0, 1], duration: 1 })
  .start();
Copy

dim and undim an element using dim and undim animation steps

p.animations.new()
  .dim(1)
  .delay(1)
  .undim(1)
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.color({
  target: [0, 0, 1, 1],
  duration: 2,
});
const step2 = new Fig.Animation.ColorAnimationStep({
  element: p,
  target: [0, 0.8, 0, 1],
  duration: 2,
});

p.animations.new()
  .then(step1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

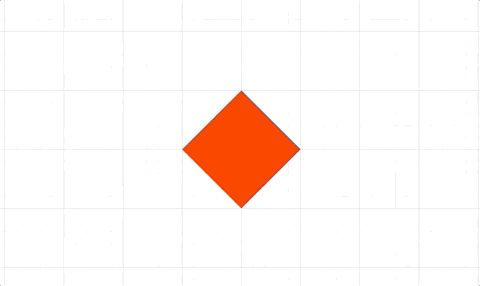

DimAnimationStep

Extends ColorAnimationStep

Dim color animation step

Animates color of element to the dimColor property of FigureElement

Parameters

• durationOrOptions: number | OBJ_ElementAnimationStep

Simple dim

p.animations.new()
  .dim(2)
  .start();
Copy

Dim using options object

p.animations.new()
  .dim({ delay: 1, duration: 2 })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.dim(2);
const step2 = new Fig.Animation.DimAnimationStep({
  element: p,
  duration: 2,
});

p.animations.new()
  .then(step1)
  .undim(1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

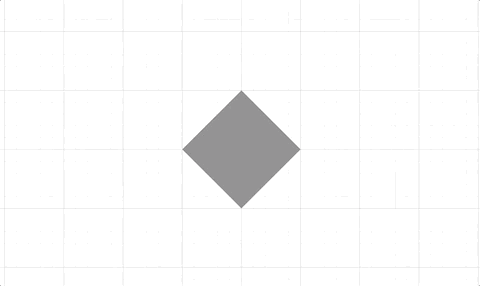

UndimAnimationStep

Extends ColorAnimationStep

Undim color animation step

Animates color of element to the defaultColor property of FigureElement

Parameters

• durationOrOptions: number | OBJ_ElementAnimationStep

Simple undim

p.dim();
p.animations.new()
  .undim(2)
  .start();
Copy

Undim using options object

p.dim();
p.animations.new()
  .undim({ delay: 1, duration: 2 })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.undim(2);
const step2 = new Fig.Animation.UndimAnimationStep({
  element: p,
  duration: 2,
});

p.dim();
p.animations.new()
  .then(step1)
  .dim(1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

OpacityAnimationStep

Extends ElementAnimationStep

Opacity Animation Step

A FigureElement has color and opacity properties. The color property has an alpha channel that defines opacity, but it should be used as a base color definition, and not used to dissolve an element in and out.

Therefore, to animate an element's opacity or temporarily dissolve in or out an element, use an opacity animation step.

The opacity is multiplied by the color alpha channel to get the final opacity of the element.

By default, the opacity will start with the FigureElement's current opacity unless dissolving. If dissolving, the opacity will start at 0 if dissolving in, or 1 if dissolving out unless dissolveFromCurrent is true in which case the opacity will start from the current opacity.

The DissolveInAnimationStep and DissolveOutAnimationStep extend the OpacityAnimationStep to make it even more convenient to dissolve.

Parameters

• options: OBJ_OpacityAnimationStep

Using numerical values for opacity

p.animations.new()
  .opacity({ target: 0.4, duration: 2 })
  .opacity({ target: 1, duration: 2 })
  .start();
Copy

Dissolve out then in

p.animations.new()
  .opacity({ dissolve: 'out', duration: 2 })
  .opacity({ dissolve: 'in', duration: 2 })
  .start();
Copy

Using the dissolve animation step

p.animations.new()
  .dissolveOut(2)
  .dissolveIn({ delay: 1, duration: 2 })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.opacity({
  target: 0,
  duration: 2,
});
const step2 = new Fig.Animation.OpacityAnimationStep({
  element: p,
  target: 1,
  duration: 2,
});
const step3 = p.animations.dissolveOut({
  duration: 2,
});
const step4 = new Fig.Animation.DissolveInAnimationStep({
  element: p,
  duration: 2,
});

p.animations.new()
  .then(step1)
  .then(step2)
  .then(step3)
  .then(step4)
  .start();
Copy

To test examples, append them to the boilerplate

---

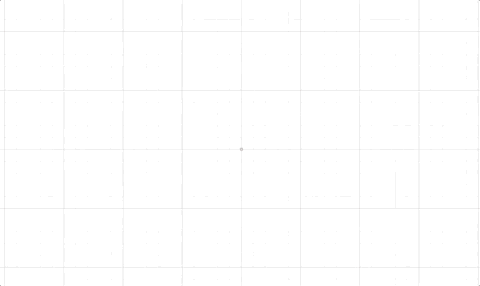

DissolveInAnimationStep

Extends OpacityAnimationStep

Dissolve in animation step

Animates opacity of element to dissolve in.

Parameters

• durationOrOptions: number | OBJ_ElementAnimationStep

Simple dissolve in

p.setOpacity(0)
p.animations.new()
  .dissolveIn(2)
  .start();
Copy

Dissolve in using options object

p.setOpacity(0);
p.animations.new()
  .dissolveIn({ delay: 1, duration: 2 })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.dissolveIn(2);
const step2 = new Fig.Animation.DissolveInAnimationStep({
  element: p,
  duration: 2,
});

p.setOpacity(0);
p.animations.new()
  .then(step1)
  .dissolveOut(1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

DissolveOutAnimationStep

Extends OpacityAnimationStep

Dissolve out animation step

Animates opacity of element to dissolve out.

Parameters

• durationOrOptions: number | OBJ_ElementAnimationStep

Simple dissolve out

p.animations.new()
  .dissolveOut(2)
  .start();
Copy

Dissolve out using options object

p.animations.new()
  .dissolveOut({ delay: 1, duration: 2 })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.dissolveOut(2);
const step2 = new Fig.Animation.DissolveOutAnimationStep({
  element: p,
  duration: 2,
});

p.animations.new()
  .then(step1)
  .dissolveIn(1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

PositionAnimationStep

Extends ElementAnimationStep

Position animation step

The position animation step animates the first Translation transform in the FigureElement's Transform.

By default, the position will start with the element's current position.

Use either delta or target to define it's end point.

The path of travel between start and target can either be a straight line ('linear') or a quadratic bezier curve ('curve')

For custom paths, the CustomAnimationStep can be used.

Parameters

• options: OBJ_PositionAnimationStep

Using duration

p.animations.new()
  .position({ target: [1, 0], duration: 2 })
  .start()
Copy

Using velocity

p.animations.new()
  .position({ target: [1, 0], velocity: 0.5 })
  .start()
Copy

Linear and curved path

p.animations.new()
  .delay(1)
  .position({ target: [1, 0], duration: 2 })
  .position({
    target: [0, 0],
    duration: 2,
    path: {
      style: 'curve',
      magnitude: 0.8,
      direction: 'up',
    },
  })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.position({ target: [1, 0], duration: 2 });
const step2 = new Fig.Animation.PositionAnimationStep({
  element: p,
  target: [0, 0],
  duration: 2,
});

p.animations.new()
  .then(step1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

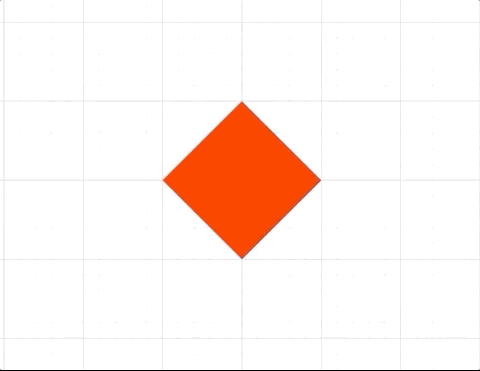

PulseAnimationStep

Extends ElementAnimationStep

Pulse animation step

The pulse animation step animates a pulse.

The options are the same as those in the * pulse method.

Parameters

• options: OBJ_PulseAnimationStep

Scale pulse, rotation pulse and translation pulse

p.animations.new()
  .pulse({
    scale: 1.5,
    duration: 1,
  })
  .pulse({
    duration: 1,
    rotation: 0.15,
    frequency: 4,
  })
  .pulse({
    duration: 1,
    translation: 0.02,
    min: -0.02,
    frequency: 4,
  })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.pulse({
  scale: 1.5,
  duration: 1,
});
const step2 = new Fig.Animation.PulseAnimationStep({
  element: p,
  rotation: 0.15,
  frequency: 4,
});
p.animations.new()
  .then(step1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

RotationAnimationStep

Extends ElementAnimationStep

Rotation animation step

The rotation animation step animates the first Rotation transform in the FigureElement's Transform.

By default, the rotation will start with the element's current rotation.

Use either delta or target to define it's end point

Parameters

• options: OBJ_RotationAnimationStep

Using duration

p.animations.new()
  .rotation({ target: Math.PI, duration: 2 })
  .start();
Copy

Using velocity

p.animations.new()
  .rotation({ target: Math.PI, velocity: Math.PI / 2 })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.rotation({ target: Math.PI, duration: 2 });
const step2 = new Fig.Animation.RotationAnimationStep({
  element: p,
  target: 0,
  duration: 2,
});

p.animations.new()
  .then(step1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

ScaleAnimationStep

Extends ElementAnimationStep

Scale Animation Step

The scale animation step animates the first Scale transform in the FigureElement's Transform.

By default, the scale will start with the element's current scale.

Use either delta or target to define it's end point.

Scale can be defined as either a point or number. If number, both x and y scale terms will be the same.

Parameters

• options: OBJ_ScaleAnimationStep

Using duration

p.animations.new()
  .scale({ target: 2, duration: 2 })
  .start();
Copy

Using velocity

p.animations.new()
  .scale({ target: 2, velocity: 0.5 })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.scale({ target: 1.5, duration: 2 });
const step2 = new Fig.Animation.ScaleAnimationStep({
  element: p,
  target: 1,
  duration: 2,
});

p.animations.new()
  .then(step1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

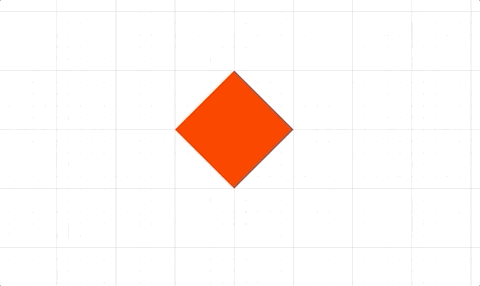

ScenarioAnimationStep

Extends ElementAnimationStep

Scenario Animation Step

A scenario defines an element's transform and color and can be used to make code more readable and reusable.

By default, the scenario will start with the element's current transform and color.

Parameters

• options: OBJ_ScenarioAnimationStep

NOTE - use these scenario definitions for all examples below

p.scenarios['center'] = { position: [0, 0], scale: [1, 1], color: [1, 0, 0, 1] };
p.scenarios['right'] = { position: [1, 0], scale: [2, 1], color: [0, 0, 1, 1] };
p.scenarios['bottom'] = { position: [0, -0.5], scale: [0.5, 1], color: [0, 0.5, 0, 1] };
Copy

Using duration

p.animations.new()
  .scenario({ target: 'right', duration: 2 })
  .scenario({ target: 'bottom', duration: 2 })
  .scenario({ target: 'center', duration: 2 })
  .start();
Copy

Using velocity

p.animations.new()
  .scenario({
    target: 'right',
    velocity: { position: 0.5, scale: 0.2 },
  })
  .scenario({ target: 'bottom', velocity: { position: 0.5 } })
  .scenario({ target: 'center', velocity: { color: 0.2 } })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.scenario({
  target: 'right',
  duration: 2,
});
const step2 = new Fig.Animation.ScenarioAnimationStep({
  element: p,
  target: 'bottom',
  duration: 2,
});

p.animations.new()
  .then(step1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

TransformAnimationStep

Extends ElementAnimationStep

Transform Animation Step

By default, the transform will start with the element's current transform.

A Transform chains many transform links where each link might be a Rotation, Scale or Translation transform.

start, target and delta should have the same order of transform links as the element's transform.

The TransformAnimationStep will animate each of these links with the same duration. If velocity is used to calculate the duration, then the link with the longest duration will define the duration of the animation. velocity can either be a transform with the same order of transform links as the element or it can be a constant value, which will be applied to all transform links. velocity cannot be 0.

Use either delta or target to define it's end point of the animation.

Parameters

• options: OBJ_TransformAnimationStep

Using duration

p.animations.new()
  .transform({
    target: new Fig.Transform().scale(2, 2).rotate(0.5).translate(1, 0),
    duration: 2,
  })
  .start();
Copy

Using velocity as a transform

p.animations.new()
  .transform({
    target: new Fig.Transform().scale(2, 2).rotate(0.5).translate(1, 0),
    velocity: new Fig.Transform().scale(0.5, 0.5).rotate(0.25).translate(0.5, 0.5),
  })
  .start();
Copy

Using velocity as a number

p.animations.new()
  .transform({
    target: new Fig.Transform().scale(2, 2).rotate(0.5).translate(1, 0),
    velocity: 0.5,
  })
  .start();
Copy

Using TypeParsableTransform as transform definition

p.animations.new()
  .transform({
    target: [['s', 1.5, 1.5], ['r', 0.5], ['t', 1, 0]],
    duration: 2,
  })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.transform({
  target: [['s', 1.5, 1.5], ['r', 1], ['t', 1, 0]],
  duration: 2,
});
const step2 = new Fig.Animation.TransformAnimationStep({
  element: p,
  target: [['s', 1, 1], ['r', 0], ['t', 0, 0]],
  duration: 2,
});

p.animations.new()
  .then(step1)
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---

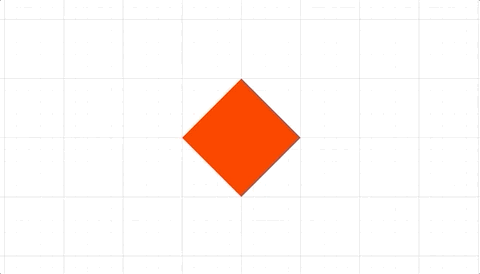

SerialAnimationStep

Extends AnimationStep

Execute an array of AnimationSteps in series.

Often the AnimationBuilder class which extends SerialAnimationStep can be used to create serial animations in a more clean way.

Parameters

• steps: Array | OBJ_SerialAnimationStep

  animation steps to perform in serial

Using a SerialAnimation step can be cumbersome, but

// can be useful if modularizing animations between files
const Rot = Fig.Animation.RotationAnimationStep;
const Delay = Fig.Animation.DelayAnimationStep;
const Pos = Fig.Animation.PositionAnimationStep;

const series = new Fig.Animation.SerialAnimationStep([
  new Rot({ element: p, target: Math.PI / 2, duration: 2 }),
  new Delay({ duration: 0.2 }),
  new Rot({ element: p, target: Math.PI, duration: 2 }),
  new Delay({ duration: 0.2 }),
  new Rot({ element: p, target: 0, direction: -1, duration: 1.3, progression: 'easein' }),
  new Pos({ element: p, target: [1, 0], duration: 2, progression: 'easeout' }),
]);

p.animations.animations.push(series);
p.animations.start()
Copy

Same animation but with AnimationBuilder (which is an extension of

// `SerialAnimationStep`)
p.animations.new()
  .rotation({ target: Math.PI / 2, duration: 2 })
  .delay(0.2)
  .rotation({ target: Math.PI, duration: 2 })
  .delay(0.2)
  .rotation({ target: 0, duration: 1, direction: -1, progression: 'easein' })
  .position({ target: [1, 0], duration: 2, progression: 'easeout' })
  .start();
Copy

To test examples, append them to the boilerplate

---

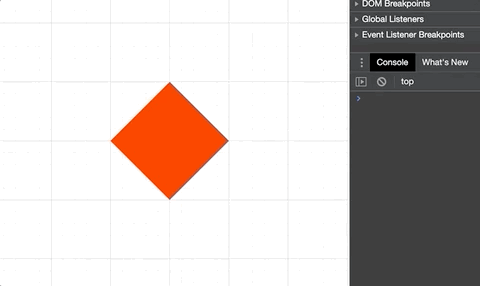

TriggerAnimationStep

Extends AnimationStep

Trigger Animation Step

A trigger step executes a custom function

A delay will delay the triggering of the custom function while duration will pad time at the end of the trigger before the animation step finishes.

Parameters

• options: OBJ_TriggerAnimationStep | function(): void

Simple trigger

p.animations.new()
  .position({ target: [1, 0], duration: 2 })
  .trigger(() => { console.log('arrived at (1, 0)') })
  .position({ target: [0, 0], duration: 2 })
  .trigger(() => { console.log('arrived at (0, 0)') })
  .start();
Copy

Trigger with delay, duration and payload

const printPosition = (pos) => {
  console.log(`arrived at ${pos}`);
};

p.animations.new()
  .position({ target: [1, 0], duration: 2 })
  .trigger({
    delay: 1,
    callback: printPosition,
    payload: '(1, 0)',
    duration: 1,
  })
  .position({ target: [0, 0], duration: 2 })
  .trigger({ callback: printPosition, payload: '(0, 0)' })
  .start();
Copy

Different ways to create a stand-alone step

const step1 = p.animations.trigger({
  callback: () => { console.log('arrived at (1, 0)') },
});
const step2 = new Fig.Animation.TriggerAnimationStep({
  callback: () => { console.log('arrived at (0, 0)') },
});

p.animations.new()
  .position({ target: [1, 0], duration: 2 })
  .then(step1)
  .position({ target: [0, 0], duration: 2 })
  .then(step2)
  .start();
Copy

To test examples, append them to the boilerplate

---
