2D Shape Collections API Reference

Contents

• COL_Angle
• CollectionsAngle
• COL_Axis
• CollectionsAxis
• COL_Button
• CollectionsButton
• COL_Line
• CollectionsLine
• COL_Plot
• CollectionsPlot
• COL_Polyline
• CollectionsPolyline
• COL_Rectangle
• CollectionsRectangle
• COL_Slider
• CollectionsSlider
• COL_Toggle
• CollectionsToggle
• OBJ_Collection

---

COL_Angle

Extends OBJ_Collection

CollectionsAngle options object that extends OBJ_Collection options object (without parent).

The Collections Angle is a convient and powerful angle FigureElementCollection that can draw one or several arcs of an angle annotation, a label, arrows, and the corner of an angle. It also includes some methods to make it convient to use dynamically.

There are two ways to define an angle. With a position, startAngle and angle, or with three points. The angle can then be annotated with a curve and a label on either side of the corner using the direction property.

The first way to define an angle is with position, startAngle and angle. position is the location of the vertex of the corner. Two lines join to make a corner, from which an angle annotation can be superimposed. The first line is defined with startAngle and the second line defined by angle relative to the first line. angle can either be positive or negative to define the second line.

The second way to define an angle is with three points p1, p2 and p3. p2 is the vertex position of the corner. Line21 is first line of the corner and Line23 is the second.

An angle can be annotated with a curve (or many multiple curves) and a label. direction defines which side of the corner the annotations will be drawn. direction can either be positive or negative (1 or -1).

A positive direction will place the annotations:

• on the angle formed between startAngle and angle
• OR the angle formed between Line21 and Line23 in the positive rotation direction

A negative direction will place the annotations on the other side of the corner.

A curve with multiple lines and/or arrows can be defined with curve.

A label that can be the real angle in degrees or radians, text or an equation can be defined with label.

The annotations will be placed at some radius from the corner vertex. offset can be used to draw the line some offset away from the line definition where a positive offset is on the side of the line that the line rotates toward when rotating in the positive direction.

Pulsing this collection normally would pulse the scale of everything. If it often desirable to pulse only parts of the angle in special ways. Therefore this collection provides a method pulseAngle to allow this. This options object can define the default values for pulseAngle if desired.

Properties

• position: Point | undefined

  position of the angle vertex

• startAngle: number | undefined

  rotation where the angle should start

• angle: number | undefined

  size of the angle

• p1: Point | undefined

  alternate way to define startAngle with p2 and p3

• p2: Point | undefined

  alternate way to define position of the angle vertex with p2 and p3

• p3: Point | undefined

  alternate way to define size of angle with p2 and p3

• direction: 1 | -1 | undefined

  side of the corner the angle annotations reside

• curve: OBJ_AngleCurve | undefined

  options for a curve annotation

• arrow: TypeAngleArrows | undefined

  options for arrow annotations

• corner: OBJ_AngleCorner | undefined

  options for drawing a corner

• label: TypeAngleLabelOptions | undefined

  options for label annotations

• pulseAngle: OBJ_PulseAngle | undefined

  default pulseAngle options

---

CollectionsAngle

FigureElementCollection representing an angle.

This object defines a convient and powerful angle FigureElementCollection that includes one or more curve annotations, arrows, a label annotation that can self align and some methods to make it convient to use dynamically.

See COL_Angle for the options that can be used when creating the angle.

The object contains two additional animation steps angle and pulseAngle that animate a change in angle, and animate a pulsing of the angle respectively. The animation steps are available in the animation manager ( FigureElement.animations), and in the animation builder (animations.new and animations.builder).

Some of the useful methods included in an collections angle are:

• pulseAngle - customize pulsing the angle without
• setMovable - overrides FigureElement.setMovable and allowing for more complex move options.

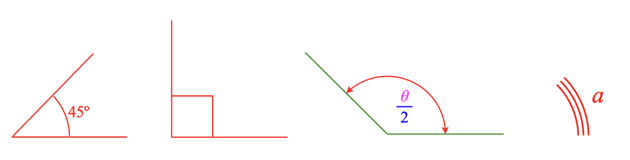

Angle with size label

figure.add({
  name: 'a',
  make: 'collections.angle',
  angle: Math.PI / 4,
  label: null,
  curve: {
    radius: 0.5,
    width: 0.01,
  },
  corner: {
    width: 0.01,
    length: 1,
  },
});
Copy

Right angle, created from figure.collections

const a = figure.collections.angle({
  angle: Math.PI / 2,
  curve: {
    autoRightAngle: true,
    width: 0.01,
  },
  corner: {
    width: 0.01,
    length: 1,
  },
});
figure.add('a', a);
Copy

Multi colored angle with arrows and an equation label

figure.add({
  name: 'a',
  make: 'collections.angle',
  angle: Math.PI / 4 * 3,
  label: {
    text: {
      elements: {
        theta: { text: '\u03b8', color: [1, 0, 1, 1] },
      },
      forms: {
        0: { frac: ['theta', 'vinculum', '2']},
      },
    },
    offset: 0.05,
    location: 'inside',
    color: [0, 0, 1, 1],
  },
  curve: {
    radius: 0.5,
    width: 0.01,
  },
  arrow: 'barb',
  corner: {
    width: 0.01,
    length: 1,
    color: [0, 0.5, 0, 1],
  },
});
Copy

Multiple curve angle, without corner

const a = figure.collections.angle({
  angle: Math.PI / 4,
  curve: {
    num: 3,
    step: -0.03,
    radius: 0.5,
    width: 0.01,
  },
  label: {
    text: 'a',
    offset: 0.05,
  },
});
figure.add('a', a);
Copy

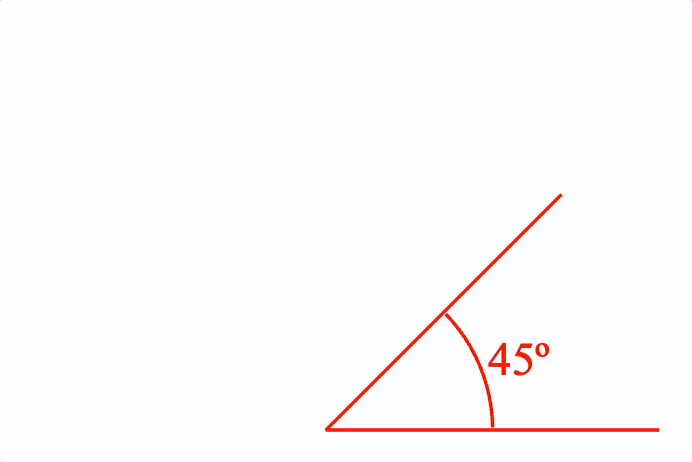

Change angle animation

figure.add({
  name: 'a',
  make: 'collections.angle',
  angle: Math.PI / 4,
  label: null,
  curve: {
    radius: 0.5,
    width: 0.01,
  },
  corner: {
    width: 0.01,
    length: 1,
  },
});
figure.elements._a.animations.new()
  .angle({ start: Math.PI / 4, target: Math.PI / 4 * 3, duration: 3 })
  .start();
Copy

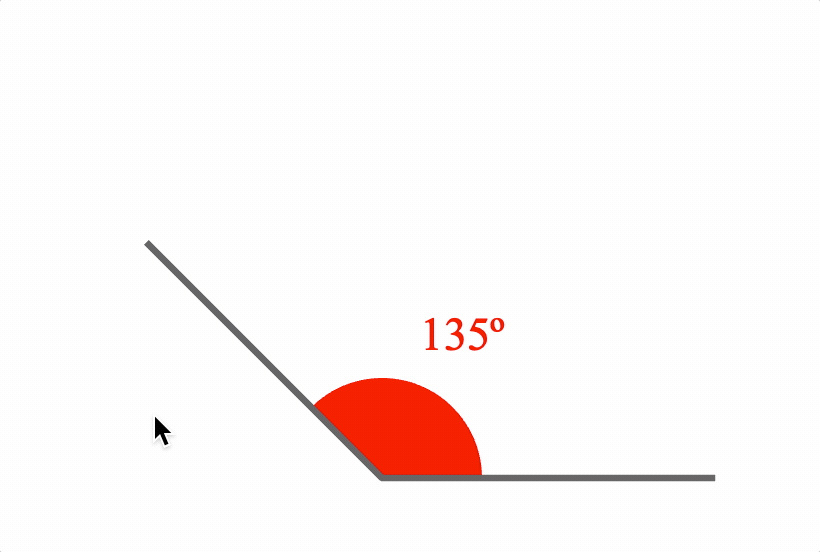

Movable angle

figure.add({
  name: 'a',
  make: 'collections.angle',
  angle: Math.PI / 4 * 3,
  label: {
    text: null,
    location: 'outside',
    orientation: 'horizontal',
    offset: 0.1,
    update: true,
    sides: 200,
  },
  curve: {
    radius: 0.3,
    fill: true,
  },
  corner: {
    width: 0.02,
    length: 1,
    color: [0.4, 0.4, 0.4, 1],
  },
});
figure.elements._a.setMovable({
  startArm: 'rotation',
  endArm: 'angle',
  movePadRadius: 0.3,
});
Copy

See OBJ_AngleAnimationStep for angle animation step options.

See OBJ_PulseAngleAnimationStep for pulse angle animation step options.

To test examples below, append them to the boilerplate.

---

COL_Axis

Extends OBJ_Collection

CollectionsAxis options object that extends OBJ_Collection options object (without parent).

A zoom axis can be used to create a number line, used as an axis in COL_Plot and/or used to plot a COL_Trace against.

An axis is a line that may have

• tick marks
• labels
• grid lines
• a title

An axis is drawn to a length. It will have values along its length from start to stop. Ticks, grid lines and labels are all drawn at axis value positions. All other dimensions, such as line lengths, widths, positions, spaces and offsets are defined in draw space, or in the same space as the length of the axis.

Properties

• axis: 'x' | 'y' | undefined = 'x'

  'x' axes are horizontal, 'y' axes are vertical

• length: number | undefined

  length of the axis in draw space

• line: OBJ_AxisLineStyle | boolean | undefined

  line style of the axis - false will draw no line. By default, a solid line will be drawn if not defined.

• start: number | undefined = 0

  start value of axis

• stop: number | undefined = start + 1

  stop value of axis. stop must be larger than start

• ticks: OBJ_AxisTicks | Array<OBJ_AxisTicks> | boolean | undefined = false

  tick options. Use an Array to setup multiple sets/styles of ticks. Use a boolean value to turn ticks on or off. Use a TypeTickLocation to only set tick location property

• labels: OBJ_AxisLabels | string | () => Array<string> | undefined

  label options. Use false to turn labels off, or a string or function as a callback to define custom labels for a set of values. Use TypeLabelLocation to only set the label location property.

• grid: OBJ_AxisTicks | Array<OBJ_AxisTicks> | boolean | undefined = false

  grid options. Use an array for multiple sets of grids, and use a boolean to turn grids on and off

• title: OBJ_AxisTitle | string | undefined

  axis title

• font: OBJ_Font | undefined = used by title and labels

  default font of axis

• show: boolean | undefined = true

  false hides the axis. Two axes are needed to plot an CollectionsTrace on a CollectionsPlot, but if either or both axes aren't to be drawn, then use false to hide each axis

• auto: [number, number] | undefined

  Will select automatic values for start, stop, and step that cover the range [min, max]

• autoStep: boolean | 'decimal' | undefined = false

  If true then start, stop and step tick, grid and label values will be automatically calculated such that they land on 0 and either double/half the original step (true) or ensure the steps land on factors of 10 ('decimal'). This needs to be not false if panning or zooming. If false, then the tick, grid and label values will be from the start, stop and step properties.

• min: number | null = null

  minimum value axis can be zoomed or panned to where null no limit

• max: number | null = null

  maximum value axis can be zoomed or panned to where null no limit

• position: TypeParsablePoint | undefined = [0, 0]

  axis position

• values: Array<number> | undefined

  custom values for labels, ticks and grid. Only works for one level of ticks and grid, and doesn't not accomodate zooming or panning.

---

CollectionsAxis

FigureElementCollection representing an Axis.

This object defines an axis with an axis line, tick marks, labels, grid lines and a title.

See COL_Axis for the options that can be used when creating the axis.

An axis is drawn to a length. It will have values along its length from start to stop. Ticks, grid lines and labels are all drawn at axis value positions. All other dimensions, such as line lengths, widths, positions, spaces and offsets are defined in draw space, or in the same space as the length of the axis.

The object contains additional methods that convert between axis values and draw space positions, as well as a convenience method to report if a value is within an axis.

• valueToDraw
• drawToValue
• inAxis

To test examples below, append them to the boilerplate.

For more examples of axis labels and axis ticks, see OBJ_AxisLabels and OBJ_AxisTicks.

By default an axis is an 'x' axis

figure.add({
  make: 'collections.axis',
});
Copy

An axis can also be created and then added to a figure

// An axis can have specific start and stop values
// An axis can be a y axis
const axis = figure.collections.axis({
  axis: 'y',
  start: -10,
  stop: 10,
  step: 5,
});
figure.add('axis', axis);
Copy

An axis can have multiple sets of ticks and a title

figure.add({
  make: 'collections.axis',
  step: [0.2, 0.05],
  ticks: [
    true,
    { length: 0.04, location: 'bottom' },
  ],
  title: 'time (s)',
});
Copy

An axis line and ticks can be customized to be dashed

// and have arrows
figure.add({
  make: 'collections.axis',
  length: 2.5,
  start: -100,
  stop: 100,
  step: 25,
  line: {
    dash: [0.01, 0.01],
    arrow: 'barb',
  },
  ticks: { dash: [0.01, 0.01] },
  title: {
    font: { style: 'italic', family: 'Times New Roman' },
    text: 'x',
    location: 'right',
  },
});
Copy

An axis can have grid lines extend from it, and

// multi-line, formatted titles
figure.add({
  make: 'collections.axis',
  stop: 2,
  step: [0.5, 0.1],
  grid: [
    { length: 1, color: [0.5, 0.5, 0.5, 1] },
    { length: 1, dash: [0.01, 0.01], color: [0.7, 0.7, 0.7, 1] },
  ],
  title: {
    font: { color: [0.4, 0.4, 0.4, 1] },
    text: [
      'Total Time',
      {
        text: 'in seconds',
        font: { size: 0.1 },
        lineSpace: 0.12,
      },
    ],
  },
});
Copy

COL_Axis for parameter descriptions

---

COL_Button

Extends OBJ_Collection

CollectionsButton options object that extends OBJ_Collection options object (without parent).

Properties

• width: number | undefined

  button width

• height: number | undefined

  button height

• corner: OBJ_CurvedCorner | undefined

  button corner

• line: null | OBJ_LineStyleSimple | undefined

  button outline - use null to remove the default line

• label: OBJ_ButtonLabel | undefined

  button label

• colorLine: TypeColor | undefined
• colorFill: TypeColor | undefined
• colorLabel: TypeColor | undefined
• touchDown: OBJ_ButtonColorState> | undefined

  set colors between a touch down and touch up

• states: Array<OBJ_ButtonState | string> | undefined

---

CollectionsButton

FigureElementCollection representing a button.

A button can be simple, or it can change state with each press.

Notifications - The notification manager property notifications will publish the following events:

• touch: button is pressed - the current state index is passed to the subscriber

See COL_Button for setup options.

To test examples below, append them to the boilerplate

Simple button

figure.add({
  make: 'collections.button',
  label: 'Start',
});
Copy

Borderless button

figure.add({
  make: 'collections.button',
  label: 'Start',
  colorFill: [0.8, 0.8, 0.8, 1],
  line: null,
});
Copy

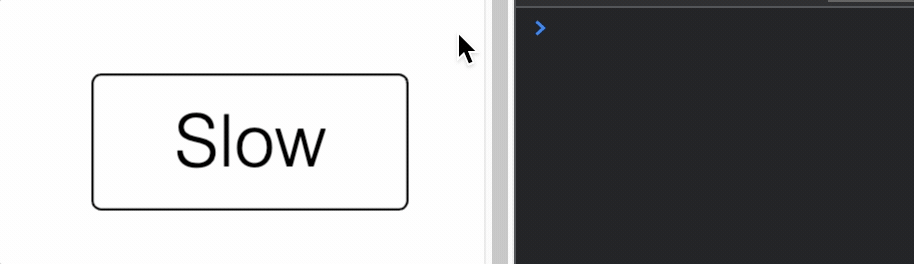

Button that changes state and has a touch buffer of 0.1 around it

const button = figure.add({
  make: 'collections.button',
  states: ['Slow', 'Medium', 'Fast'],
  width: 0.7,
  height: 0.3,
  touchBorder: 0.1,
});

button.notifications.add('touch', (index) => {
  console.log(index);
});
Copy

---

COL_Line

Extends OBJ_Collection

CollectionsLine options object that extends OBJ_Collection options object (without parent).

The Collections Line is a convient and powerful line FigureElementCollection that includes the line, arrows, a label annotation and some methods to make it convient to use dynamically.

A line can either be defined by its two end points (p1, p2), or a point (p1), length and angle.

offset can be used to draw the line some offset away from the line definition where a positive offset is on the side of the line that the line rotates toward when rotating in the positive direction. This is especially useful for creating lines that show dimensions of shapes.

The line also has a control point which is positioned on the line with the align property. The control point is the line's center of rotation, and fixes the point from which the line changes length. This is also the point where the line collection position will be if getPosition is called on the element.

For instance, setting the control point at align: 'start' will mean that if the line can rotate, it will rotate around p1, and if the length is changed, then p1 will remain fixed while p2 changes.

width sets the width of the line. Setting the width to 0 will hide the line itself, but if arrows or a label are defined they will still be displayed.

Use the label property to define and position a label relative to the line. The label can be any string, equation or the actual length of the line and be oriented relative to the line or always be horizontal.

Use the arrow and dash properties to define arrows and the line style.

Pulsing this collection normally would pulse both the length and width of the line. If it often desirable to pulse a line without changing its length, and so this collection provides a method pulseWidth to allow this. This options object can define the default values for pulseWidth if desired.

Default pulse values can then be specified with the pulse property.

Properties

• p1: TypeParsablePoint | undefined

  First point of line

• p2: TypeParsablePoint | undefined

  Will override length/angle definition

• angle: number | undefined

  line angle

• length: number | undefined

  line length

• offset: number | undefined

  line offset

• align: 'start' | 'end' | 'center' | number | undefined = only needed if rotating line

  rotation center of line

• width: number | undefined

  line width

• label: OBJ_LineLabel | undefined

  label annotation

• arrow: OBJ_LineArrows | TypeArrowHead | undefined = s

  line arrow

• dash: TypeDash | undefined

  make the line dashed

• pulseWidth: OBJ_PulseWidth | undefined

  default options for pulseWidth pulse

• pulse: OBJ_Pulse | undefined

  default options for normal pulse

• move: OBJ_LineMove | undefined

  line move options

---

CollectionsLine

FigureElementCollection representing a line.

This object defines a convient and powerful line FigureElementCollection that includes a solid or dashed line, arrows, a label annotation that can self align with line orientation, and some methods to make it convient to use dynamically.

See COL_Line for the options that can be used when creating the line.

The object contains a two additional animation steps. length animates changing the line length, and pulseWidth animates the pulseWidth method. The animation steps are available in the animation manager ( FigureElement.animations), and in the animation builder (animations.new and animations.builder).

Some of the useful methods included in an collections line are:

• pulseWidth - pulses the line without changing its length
• grow - starts and animation that executes a single length animation step
• grow - overrides FigureElement.setMovable and allowing for more complex move options.

Pulse an annotated line

figure.add({
  name: 'l',
  make: 'collections.line',
  p1: [-1, 0],
  p2: [1, 0],
  arrow: 'triangle',
  label: {
    text: 'length',
    offset: 0.04,
  },
});

figure.elements._l.pulseWidth({ duration: 2 });
Copy

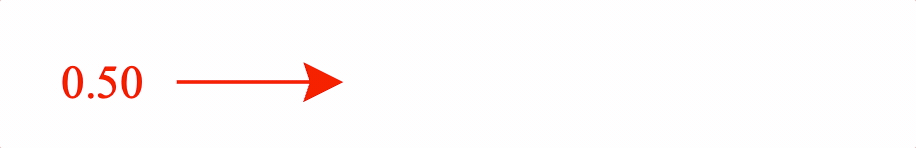

Animate growing a line while showing it's length

figure.add({
  name: 'l',
  make: 'collections.line',
  p1: [-1, 0],
  p2: [-0.5, 0],
  align: 'start',
  arrow: { end: { head: 'barb', scale: 2 } },
  label: {
    text: null,
    offset: 0.03,
    precision: 2,
    location: 'start'
  },
});

const l = figure.elements._l;
l.animations.new()
  .length({ start: 0.5, target: 2, duration: 2 })
  .start();
Copy

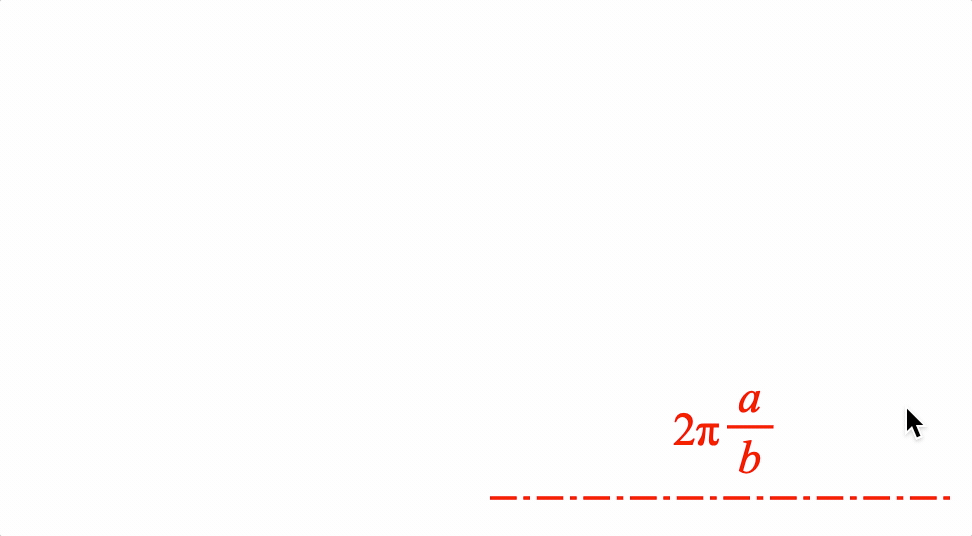

Example showing dashed line with an equation label that stays horizontal

const l = figure.collections.line({
  p1: [0, 0],
  p2: [1.4, 0],
  align: 'start',
  label: {
    text: {                             // label text is an equation
      elements: {
        twopi: '2\u03C0',
      },
      forms: {
        base: ['twopi', ' ', { frac: ['a', 'vinculum', 'b'] } ]
      },
    },
    offset: 0.03,
    orientation: 'horizontal',          // keep label horizontal
    location: 'top',                    // keep label on top of line
  },
  dash: [0.08, 0.02, 0.02, 0.02],
});
figure.add('l', l);
l.setMovable({ type: 'centerTranslateEndRotation'})
l.setAutoUpdate();
Copy

See OBJ_LengthAnimationStep for angle animation step options.

See OBJ_PulseWidthAnimationStep for pulse angle animation step options.

To test examples below, append them to the boilerplate.

---

COL_Plot

Extends OBJ_Collection

CollectionsPlot options object that extends OBJ_Collection options object (without parent).

A plot is a collection of axes and traces, and may include a title, legend and bounding frame.

Use width, height and position to define the size of the plot area (area where the traces are drawn) and where it is in the figure.

Properties

• width: number | undefined

  width of the plot area

• height: number | undefined

  height of the plot area

• x: OBJ_PlotAxis | boolean | undefined

  customize the x axis, or use false to hide it

• y: OBJ_PlotAxis | boolean | undefined

  customize the y axis, or use false to hide it

• axes: Array<OBJ_PlotAxis> | undefined

  add axes additional to x and y

• grid: boolean | undefined

  turn on and off the grid - use the grid options in x axis, y axis or axes for finer customization

• title: OBJ_PlotTitle | string | undefined

  plot title can be simply a string or fully customized with OBJ_PlotTitle

• trace: Array<COL_Trace | TypeParsablePoint> | COL_Trace | Array<TypeParsablePoint> | undefined

  Use array if plotting more than one trace. Use COL_Trace to customize the trace.

• legend: COL_PlotLegend | boolean | undefined

  true to turn the legend on, or use COL_PlotLegend to customize it's location and layout

• frame: boolean | TypeColor | OBJ_PlotFrame | undefined

  frame around the plot can be turned on with true, can be a simple color fill using Array<number> as a color, or can be fully customized with OBJ_PlotFrame

• plotArea: TypeColor | COL_Rectangle | undefined

  plot area can be a color fill with TypeColor as a color, or be fully customized with COL_Rectangle

• font: OBJ_Font | undefined = title, axes, labels, etc.

  Default font for plot

• color: TypeColor | undefined

  Default color

• position: TypeParsablePoint | undefined

  Position of the plot

• zoom: OBJ_PlotZoomOptions | 'x' | 'y' | 'xy' | undefined

  options for interactive zooming

• pan: OBJ_PlotPanOptions | 'x' | 'y' | 'xy' | undefined

  options for interactive panning

• cross: TypeParsablePoint | undefined = undefined

  value where the default x and y axes should cross. If defined, each axis.position will be overridden. If the cross point is outside of the plot area, then the axes will be drawn on the border of the plot area.

• plotAreaLabels: boolean | OBJ_PlotAreaLabelBuffer | undefined

  if true then axes with a cross point will be drawn such that the labels stay within the plot area. So, if the labels are on the left side of a y axis, and the cross point is out of the plot area to the left, then instead of the axis being drawn on the left edge of the plot area, it will be drawn within the plot area such that its labels are within the plot area (false).

• autoGrid: boolean | undefined = true

  if true sets the grid for an axes to expand accross the entire plot area. Set to false if only a partial length grid is needed

• styleTheme: 'box' | 'numberLine' | 'positiveNumberLine' | undefined = 'box'

  defines default values for tick, label, axis locations and cross points.

• colorTheme: 'light' | 'dark' | undefined = 'dark'

  defines defaul colors. 'dark' theme is better on light backgrounds while 'light' theme is better on dark backgrounds

• gestureArea: OBJ_GestureArea | undefined

  the gesture area is the plot area by default. Use this property to extend the gesture area beyond the plot area. This is useful for the user to zoom in on areas on the edge of the plot area.

---

CollectionsPlot

FigureElementCollection representing a plot including axes, traces, labels and titles.

This object provides convient and customizable plot functionality.

At its simplist, just the points of the trace to be plotted need to be passed in to get a plot with automatically generated axes, tick marks, labels and grid lines.

Additional options can be used to finely customize each of these, as well as add and customize plot and axis titles, a legend, and a frame around the entire plot.

Plots can also be interactive, with both zoom and pan functionality from mouse, mouse wheel, touch and pinch gestures.

Plot of single trace with auto axis scaling

figure.add({
  make: 'collections.plot',
  trace: pow(),
});
Copy

Multiple traces with a legend

// Some traces are customized beyond the default color to include dashes and
// markers
figure.add({
  make: 'collections.plot',
  width: 2,                                    // Plot width in figure
  height: 2,                                   // Plot height in figure
  y: { start: 0, stop: 50 },                   // Customize y axis limits
  trace: [
    { points: pow(1.5), name: 'Power 1.5' },   // Trace names are for legend
    {                                          // Trace with only markers
      points: pow(2, 0, 10, 0.5),
      name: 'Power 2',
      markers: { sides: 4, radius: 0.03 },
    },
    {                                          // Trace with markers and
      points: pow(3, 0, 10, 0.5),              // dashed line
      name: 'Power 3',
      markers: { radius: 0.03, sides: 10, line: { width: 0.005 } },
      line: { dash: [0.04, 0.01] },
    },
  ],
  legend: true,
});
Copy

Multiple grids and simple titles

figure.add({
  make: 'collections.plot',
  y: {
    start: -50,
    stop: 50,
    step: [25, 5],
    grid: [
      true,
      { width: 0.005, dash: [0.01, 0.01], color: [1, 0.7, 0.7, 1] },
    ],
    title: 'velocity (m/s)',
  },
  x: {
    start: -5,
    stop: 5,
    step: [2.5, 0.5, 0.1],
    grid: [
      true,
      { width: 0.005, dash: [0.01, 0.01], color: [1, 0.7, 0.7, 1] },
    ],
    title: 'time (s)',
  },
  trace: pow(3, -10, 10),
  title: 'Velocity over Time',
});
Copy

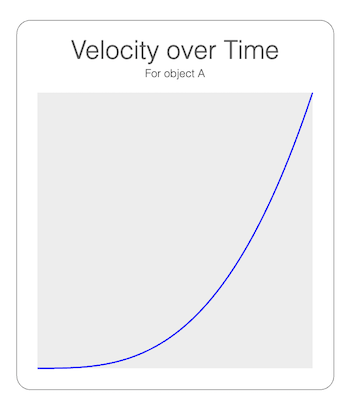

Hide axes

// Use plot frame and plot area
// Title has a subtitle
figure.add({
  make: 'collections.plot',
  trace: pow(3),
  x: { show: false },
  y: { show: false },
  plotArea: [0.93, 0.93, 0.93, 1],
  frame: {
    line: { width: 0.005, color: [0.5, 0.5, 0.5, 1] },
    corner: { radius: 0.1, sides: 10 },
    space: 0.15,
  },
  title: {
    text: [
      'Velocity over Time',
      { text: 'For object A', lineSpace: 0.13, font: { size: 0.08 } },
    ],
    offset: [0, 0],
  },
});
Copy

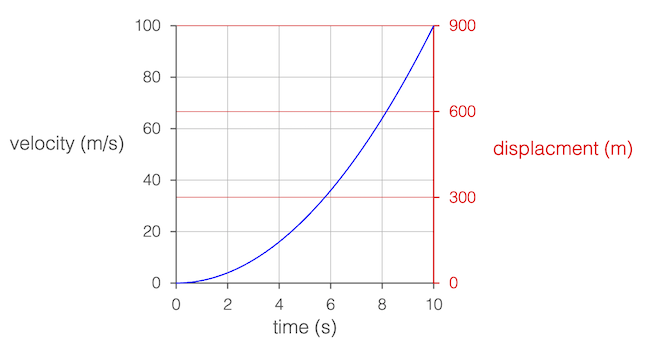

Secondary y axis

figure.add({
  make: 'collections.plot',
  trace: pow(2),
  y: {
    title: {
      text: 'velocity (m/s)',
      rotation: 0,
      xAlign: 'right',
    },
  },
  x: { title: 'time (s)' },
  axes: [
    {
      axis: 'y',
      start: 0,
      stop: 900,
      step: 300,
      color: [1, 0, 0, 1],
      location: 'right',
      title: {
        offset: [0.6, 0.1],
        text: 'displacment (m)',
        rotation: 0,
      },
    },
  ],
  position: [-1, -1],
});
Copy

Cartesian axes crossing at the zero point

// Automatic layout doesn't support this, but axes, ticks, labels and titles
// can all be customized to create it.
figure.add({
  make: 'collections.plot',
  trace: pow(3, -10, 10),
  font: { size: 0.1 },
  styleTheme: 'numberLine',
  x: {
    title: {
      text: 'x',
      font: { style: 'italic', family: 'Times New Roman', size: 0.15 },
    },
  },
  y: {
    step: 500,
    title: {
      text: 'y',
      font: { style: 'italic', family: 'Times New Roman', size: 0.15 },
    },
  },
  grid: false,
});
Copy

Zoomable and Pannable plot

// Create the points for the plot
const points = Array(3000).fill(0).map(() => {
  const x = Math.random() * 8 - 4;
  const y = Math.random() / Math.sqrt(2 * Math.PI) * Math.exp(-0.5 * x ** 2);
  return [x, y];
});

// Make a zoomable and pannable plot
const plot = figure.add({
  make: 'collections.plot',
  trace: { points, markers: { sides: 6, radius: 0.01 } },
  zoom: { axis: 'xy', min: 0.5, max: 16 },
  pan: true,
});

// Initialize by zooming in by a magnification factor of 10
plot.zoomValue([1.8333, 0.06672], 10);
Copy

See COL_Axis, OBJ_AxisLabels, OBJ_AxisTicks, COL_Trace and COL_PlotLegend for more examples of customizing specific parts of the plot.

To test examples below, append them to the boilerplate.

All examples below also use this power function to generate the traces:

const pow = (pow = 2, start = 0, stop = 10, step = 0.05) => {
  const xValues = Fig.range(start, stop, step);
  return xValues.map(x => new Fig.Point(x, x ** pow));
}
Copy

---

COL_Polyline

Extends OBJ_Collection

CollectionsPolyline options object that extends OBJ_Polyline and OBJ_Collection options object (without parent).

The Collections Polyline is a convient and powerful polyline FigureElementCollection that includes the polyline, angle annotations, side label and arrow annotations, and movable pads on each polyline point for the user to adjust dynamically.

The polyline itself is defined with an OBJ_Polyline options Object.

Angle and side annotations can be defined as COL_Angle and COL_Line, and movable pads defined with ( OBJ_Polygon & OBJ_PolylinePad).

Angles, sides and pads can all be defined either as an options object or an array of options objects. If an array, then each element in the array will correspond with a pad on the polyline. If there are less elements in the array than pads on the polyline, then the elements will recycle from the start.

Using object definitions allows for a definition of all angles, sides and pads. To customize for specific side, angle or pad indexes use = OBJ_PolylineCustomization.

Properties

• showLine: boolean | undefined = true

  false will hide the polyline's line

• angle: OBJ_PolylineAngle | Array<COL_Angle> | undefined

  angle annotations - leave undefined for no angle annotations

• side: OBJ_PolylineSide | Array<COL_Line> | undefined

  side annotations - leave undefined for no side annotations

• pad: OBJ_PolylinePad | Array<OBJ_PolylinePadSingle> | undefined

  move pad - leave undefined for no move pads

• makeValid: null | OBJ_ValidShape | undefined

  if defined, whenever points are updated the shape will be checked to ensure consistency with displayed labels of angles and sides.

• font: OBJ_Font | undefined

  default font to use for labels

---

CollectionsPolyline

FigureElementCollection representing a polyline.

This object defines a convient and powerful polyline FigureElementCollection that includes a solid or dashed, open or closed polyline, arrows, angle annotations for polyline corners, side annotations for straight lines between points and move pads at polyline points to dynamically adjust the polyline.

See COL_Polyline for the options that can be used when creating the line.

Available notifications:

• 'updatePoints': SUB_PolylineUpdatePoints

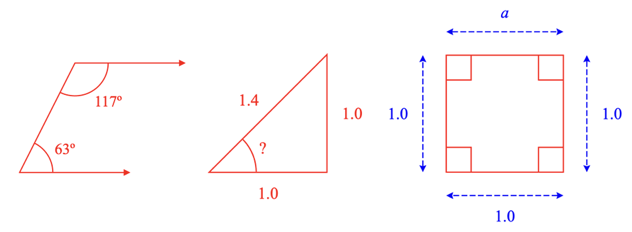

Polyline with angle annotations

figure.add({
  name: 'p',
  make: 'collections.polyline',
  points: [[1, 0], [0, 0], [0.5, 1], [1.5, 1]],
  arrow: 'triangle',
  angle: {
    label: null,
    curve: {
      radius: 0.3,
    },
  }
});
Copy

Triangle with unknown angle

figure.add({
  name: 'p',
  make: 'collections.polyline',
  points: [[1, 1], [1, 0], [0, 0]],
  close: true,
  side: {
    label: null,
  },
  angle: {
    label: {
      text: '?',
      offset: 0.05,
    },
    curve: {
      radius: 0.4,
    },
    show: [1],
  },
});
Copy

Dimensioned square

figure.add({
  name: 'p',
  make: 'collections.polyline',
  points: [[0, 1], [1, 1], [1, 0], [0, 0]],
  close: true,
  side: {
    showLine: true,
    offset: 0.2,
    color: [0, 0, 1, 1],
    arrow: 'barb',
    width: 0.01,
    label: null,
    dash: [0.05, 0.02],
    0: { label: { text: 'a' } },    // Customize side 0
  },
  angle: {
    curve: {
      autoRightAngle: true,
      radius: 0.3,
    },
  },
});
Copy

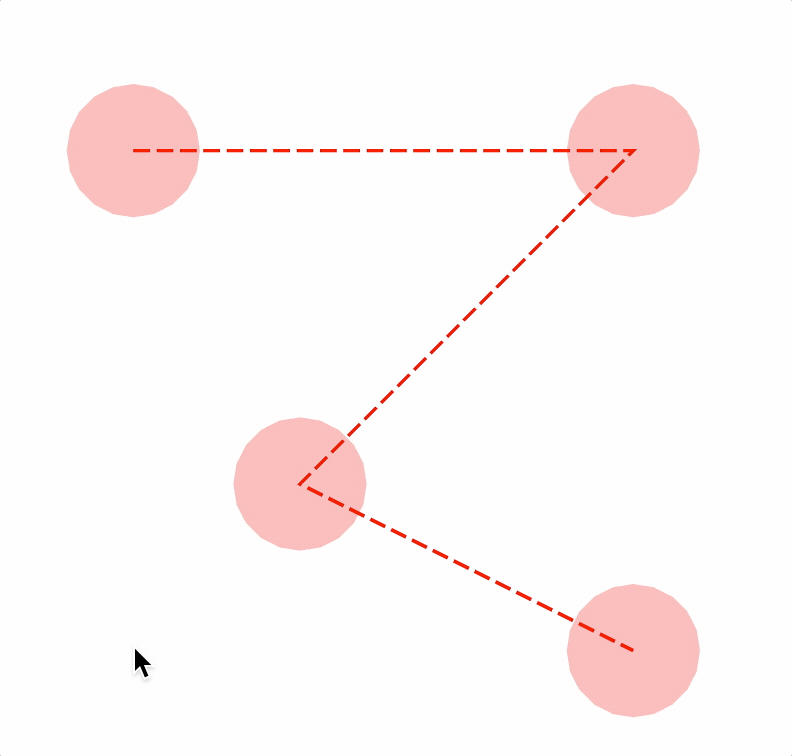

User adjustable polyline

figure.add({
  name: 'p',
  make: 'collections.polyline',
  points: [[-0.5, 1], [1, 1], [0, 0], [1, -0.5]],
  dash: [0.05, 0.02],
  pad: {
    radius: 0.2,
    color: [1, 0, 0, 0.5],    // make alpha 0 to hide pad
    isMovable: true,
  },
});
Copy

Annotations that automatically updates as user changes triangle

figure.add({
  name: 'p',
  make: 'collections.polyline',
  points: [[-1, 1], [1, 1], [0, 0]],
  close: true,
  makeValid: {
    shape: 'triangle',
    hide: {
      minAngle: Math.PI / 8,
    },
  },
  side: {
    showLine: true,
    offset: 0.2,
    color: [0.3, 0.6, 1, 1],
    arrow: 'barb',
    width: 0.01,
    label: {
      text: null,
    },
  },
  angle: {
    label: null,
    curve: { radius: 0.25 },
  },
  pad: {
    radius: 0.4,
    color: [1, 0, 0, 0.005],
    isMovable: true,
  },
});
Copy

To test examples below, append them to the boilerplate.

---

COL_Rectangle

Extends OBJ_Collection

CollectionsRectangle options object that extends OBJ_Collection options object (without parent).

This rectangle is similar to OBJ_Rectangle, except it can accomodate both a fill and a border or line simultaneously with different colors.

Properties

• width: number | undefined

  rectangle width

• height: number | undefined

  rectangle height

• xAlign: 'left' | 'center' | 'right' | number | undefined

  horiztonal alignment of the rectangle

• yAlign: 'bottom' | 'middle' | 'top' | number | undefined

  vertical alignment of the rectangle

• line: OBJ_LineStyleSimple | undefined

  lines style - leave empty if only want fill

• fill: TypeColor | OBJ_Texture | undefined

  fill color or texture

• corner: OBJ_CurvedCorner | undefined

  corner style of rectangle

• label: OBJ_TextLines | undefined

  Rectangle label

• button: boolean | TypeColor | OBJ_ButtonColor | undefined = false

  true to make the rectangle behave like a button when clicked. TypeColor to make fill, line and label the same color when clicked or OBJ_ButtonColor to specify click colors for each

---

CollectionsRectangle

FigureElementCollection representing a rectangle.

This object defines a rectangle FigureElementCollection that may include:

• border (line)
• fill
• label
• ability to surround another FigureElement with some space
• button behavior when clicked

Surrounding another element can be executed through either the surround method or the OBJ_SurroundAnimationStep found in the in the animation manager ( FigureElement.animations), and in the animation builder (animations.new and animations.builder).

Button behavior means the button will temporarily change a different color when it is clicked. By default, the button will become a little more transparent, but colors for the fill, label and border can also be specified.

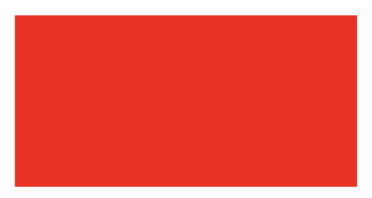

Simple rectangle

figure.add({
  name: 'rect',
  make: 'collections.rectangle',
  width: 2,
  height: 1,
});
Copy

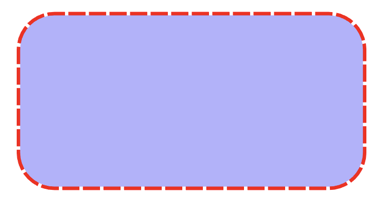

Round corner rectangle with fill and outside line

const rect = figure.collections.rectangle({
  width: 2,
  height: 1,
  line: {
    width: 0.02,
    widthIs: 'outside',
    dash: [0.1, 0.02],
  },
  corner: {
    radius: 0.2,
    sides: 10,
  },
  fill: [0.7, 0.7, 1, 1],
});
figure.add('rect', rect);
Copy

Rectangle surrounds elements of an equation

figure.add([
  {
    name: 'rect',
    make: 'collections.rectangle',
    color: [0.3, 0.3, 1, 1],
    line: { width: 0.01 },
  },
  {
    name: 'eqn',
    make: 'equation',
    forms: { 0: [{ frac: ['a', 'vinculum', 'b'] }, ' ', 'c'] },
    position: [1, 0],
    scale: 1.5,
  }
]);

const rect = figure.getElement('rect');
const eqn = figure.getElement('eqn');

rect.surround(eqn._a, 0.03);
rect.animations.new()
  .pulse({ delay: 1, scale: 1.5 })
  .surround({ target: eqn._b, space: 0.03, duration: 1 })
  .pulse({ delay: 1, scale: 1.5 })
  .surround({ target: eqn._c, space: 0.03, duration: 1 })
  .pulse({ delay: 1, scale: 1.5 })
  .start();
Copy

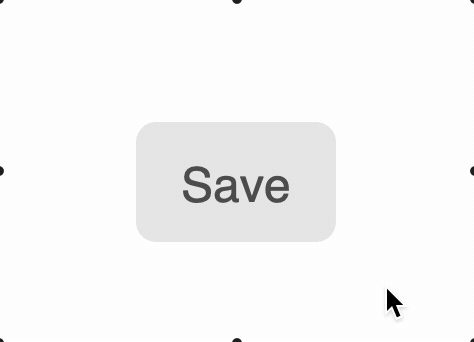

Make a rectangle that behaves like a button

figure.add([
  {
    name: 'rect',
    make: 'collections.rectangle',
    width: 0.5,
    height: 0.3,
    color: [0.3, 0.3, 0.3, 1],
    label: 'Save',
    corner: { radius: 0.05, sides: 10 },
    fill: [0.9, 0.9, 0.9, 1],
    button: {
      fill: [0.95, 0.95, 0.95, 1],
    },
    mods: {
      isTouchable: true,
      onClick: () => console.log('clicked'),
    },
  },
]);
Copy

See COL_Rectangle for setup options.

See OBJ_SurroundAnimationStep for surround animation step options.

To test examples below, append them to the boilerplate.

---

COL_Slider

Extends OBJ_Collection

CollectionsSlider options object that extends OBJ_Collection options object (without parent).

Properties

• width: number | undefined

  slider width

• height: number | undefined

  slider height

• barHeight: number | undefined

  height of slider bar bar

• sides: number | undefined = 20

  number of sides in curves

• marker: OBJ_SliderMarker | 'polygon' | 'rectangle' | 'none' | undefined = 'polygon'

  marker style

• theme: 'dark' | 'light' | undefined = dark

  selects default colors for a light or dark switch

• colorOff: TypeColor | undefined = bar color from slider value to 1

  slider off color

• colorOn: TypeColor | undefined = [0, 1, 0, 1]

  slider on color (bar color from 0 to slider value

• markerBorder: OBJ_SliderBorder | undefined = defaults to on where width is half the figure's default line width

  border around circle

• barBorder: OBJ_SliderBorder | undefined = defaults to off - width = 0

  border around bar

---

CollectionsSlider

FigureElementCollection representing a slider control.

Notifications - The notification manager property notifications will publish the following events:

• changed: slider value is changed - slider position in percent is passed as parameter to callback.

See COL_Slider for setup options.

To test examples below, append them to the boilerplate

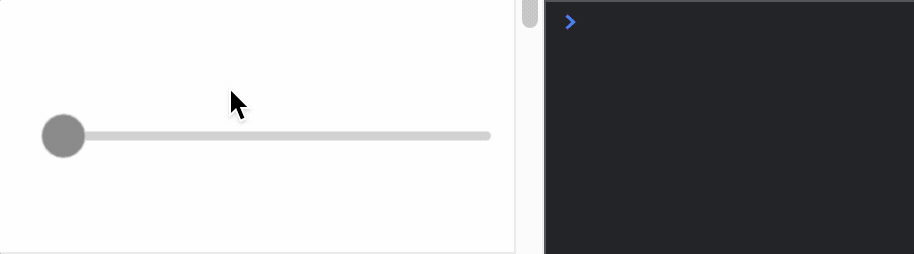

Simple slider with notification causing a console statement

const slider = figure.add({
  make: 'collections.slider',
  barHeight: 0.02,
  height: 0.1,
  width: 1,
  color: [0.5, 0.5, 0.5, 1],
  touchBorder: 0.2,
});

slider.notifications.add('changed', (position) => {
  console.log(position)
});
Copy

Slider without a marker and red fill for on

figure.add({
  make: 'collections.slider',
  barHeight: 0.1,
  colorOn: [1, 0, 0, 1],
  width: 1,
  touchBorder: 0.2,
  marker: 'none',
});
Copy

Slider with rectangle marker and multi-colors

const slider = figure.add({
  make: 'collections.slider',
  barHeight: 0.02,
  height: 0.1,
  width: 1,
  marker: 'rectangle',
  colorOff: [1, 0, 0, 1],
  colorOn: [0, 0.8, 0, 1],
  color: [0, 0, 0, 1],
});
Copy

---

COL_Toggle

Extends OBJ_Collection

CollectionsToggle options object that extends OBJ_Collection options object (without parent).

Properties

• width: number | undefined

  toggle width

• height: number | undefined

  toggle height

• barHeight: number | undefined

  height of toggle bar showing on or off

• sides: number | undefined = 20

  number of sides in curves

• theme: 'dark' | 'light' | undefined = dark

  selects default colors for a light or dark switch

• colorOff: TypeColor | undefined

  toggle off color

• colorOn: TypeColor | undefined = [0, 1, 0, 1]

  toggle on color

• circleBorder: OBJ_ToggleBorder | undefined = defaults to on where width is half the figure's default line width

  border around circle

• barBorder: OBJ_ToggleBorder | undefined = defaults to off - width = 0

  border around bar

• label: OBJ_ToggleLabel | undefined

---

CollectionsToggle

FigureElementCollection representing a toggle switch.

The toggle switch can be turned on or off.

Notifications - The notification manager property notifications will publish the following events:

• toggle: switch is changed - true will be passed if the switch is changed to on, and false will be passed if the switch is changed to off
• on: switch is changed to on
• off: switch is changed to off

See COL_Toggle for setup options.

To test examples below, append them to the boilerplate

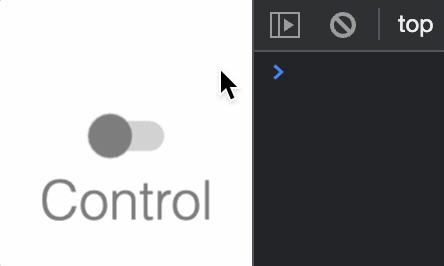

Simple toggle switch with notification causing a console statement

const toggle = figure.add({
  make: 'collections.toggle',
  label: {
    text: 'Control',
    location: 'bottom',
    scale: 0.6,
  },
});

toggle.notifications.add('toggle', (state) => {
  state ? console.log('on') : console.log('off');
});
Copy

---

OBJ_Collection

FigureElementCollection options object.

A collection is a group of other FigureElements that will all inherit the parent collections transform.

Properties

• transform: TypeParsableTransform | undefined
• position: TypeParsablePoint | undefined

  if defined, will overwrite first translation of transform

• color: TypeColor | undefined

  default color

• parent: FigureElement | null | undefined

  parent of collection

• border: TypeParsableBuffer | TypeParsableBorder | 'children' | 'rect' | undefined = 'children'

  defines border of collection. Use children to use the borders of the children. Use 'rect' for the bounding rectangle of the borders of the children. Use TypeParsableBuffer for the bounding rectangle of the borders of the children with some buffer. Use TypeParsableBorder for a custom border.

• touchBorder: TypeParsableBuffer | TypeParsableBorder | 'border' | 'rect' | undefined = 'children'

  defines the touch border of the collection. Use 'border' to use the same as the border of the collection. Use children to use the touch borders of the children. Use 'rect' for the bounding rectangle of the touch borders of the children. Use TypeParsableBuffer for the bounding rectangle of the touch borders of the children with some buffer. Use TypeParsableBorder for a custom touch border.

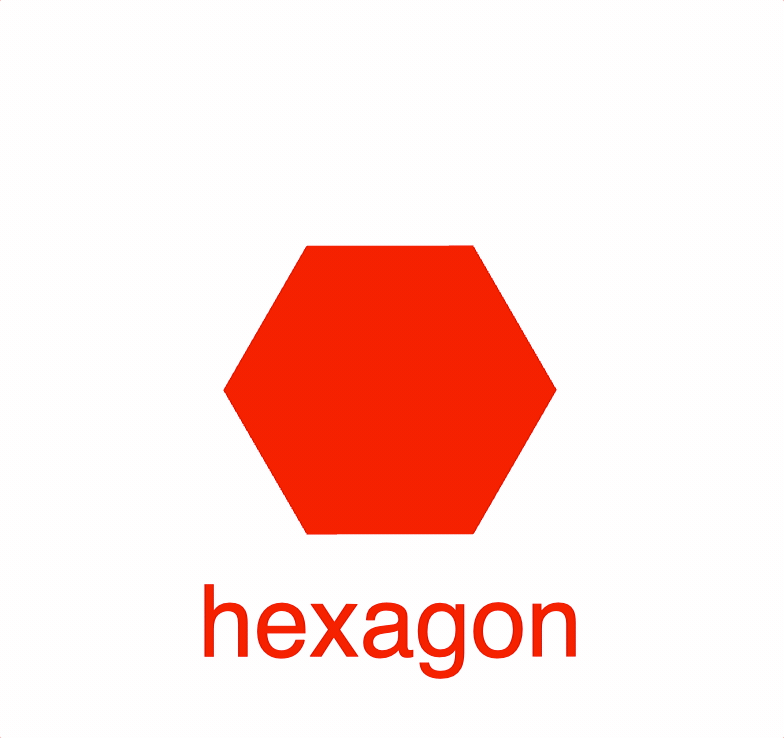

Example 1

figure.add(
  {
    name: 'c',
    make: 'collection',
    elements: [         // add two elements to the collection
      {
        name: 'hex',
        make: 'polygon',
        sides: 6,
        radius: 0.5,
      },
      {
        name: 'text',
        make: 'text',
        text: 'hexagon',
        position: [0, -0.8],
        xAlign: 'center',
        font: { size: 0.3 },
      },
    ],
  },
);

// When a collection rotates, then so does all its elements
figure.getElement('c').animations.new()
  .rotation({ target: Math.PI * 1.999, direction: 1, duration: 5 })
  .start();
Copy

Collections and primitives can also be created from figure.collections

// and `figure.primitives`.
const c = figure.collections.collection();
const hex = figure.primitives.polygon({
  sides: 6,
  radius: 0.5,
});
const text = figure.primitives.text({
  text: 'hexagon',
  position: [0, -0.8],
  xAlign: 'center',
  font: { size: 0.3 },
});
c.add('hex', hex);
c.add('text', text);
figure.add('c', c);

// When a collection rotates, then so does all its elements
c.animations.new()
  .delay(1)
  .rotation({ target: Math.PI * 1.999, direction: 1, duration: 5 })
  .start();
Copy

---
